Automatic Transaxle Control System (PHEV)
›
Position Sensor
›
Components & Components Location
›
Component
Components & Components Location: Component

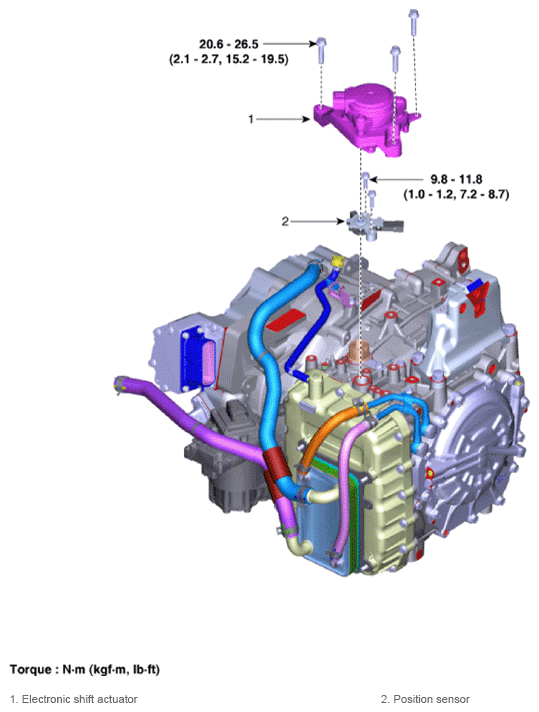

Fig 1: Position Sensor Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
