Repair Procedures: Removal
- Shift transmission to "N" range and turn ignition OFF.
- Remove the electronic shift actuator.
(Refer to Automatic Transaxle Control System - "ELECTRONIC SHIFT ACTUATOR ")

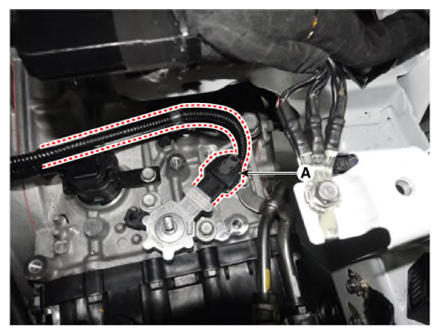

- Disconnect the position sensor connector (A).

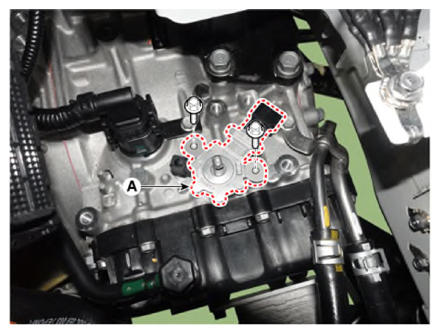

- After disconnecting the connector, remove the position sensor (A) by removing the bolts.
