Smart Key Status Check

WARNING: This page is about a different variant/trim than selected.
  1. Connect the VCI II to the Data Link Connector (DLC).
  2. After IG ON, select the "SMK STATUS INFO".

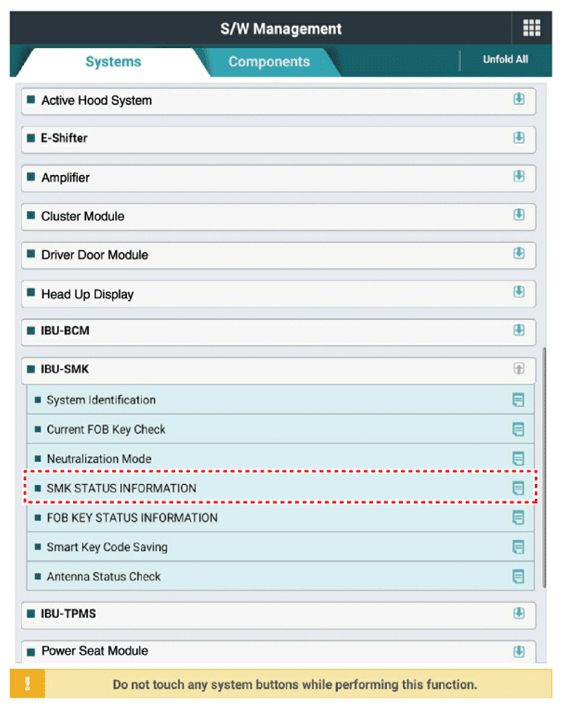

G13578786Courtesy of KIA MOTORS AMERICA, INC.

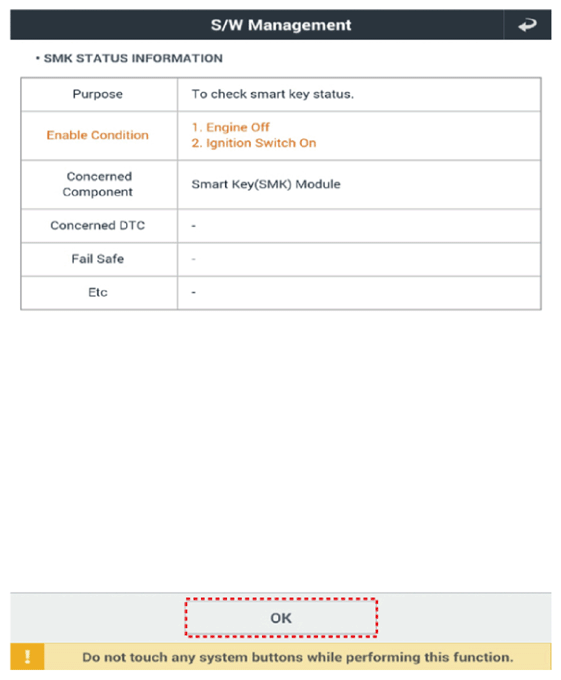

G13578787Courtesy of KIA MOTORS AMERICA, INC.

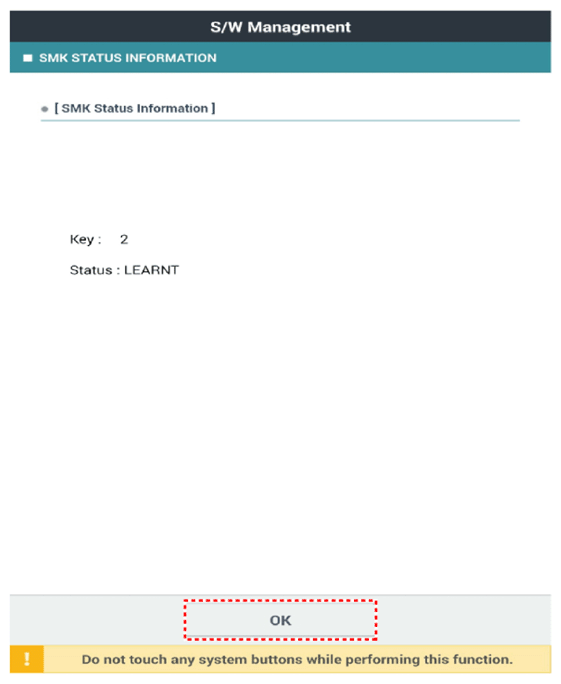

G13578788Courtesy of KIA MOTORS AMERICA, INC.
