Tailgate Outside Handle Switch

WARNING: This page is about a different variant/trim than selected.
  1. Remove the tailgate lower trim.

    (Refer to Body - " TAILGATE TRIM  ")

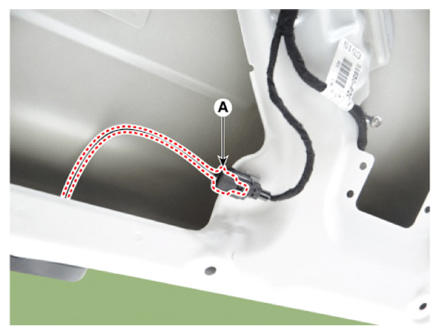

  2. Disconnect the tailgate outside handle switch connector (A).
    G13578751Courtesy of KIA MOTORS AMERICA, INC.

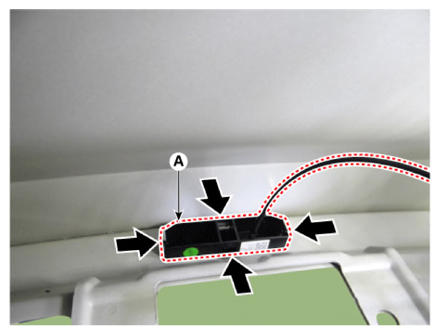

  3. Remove the tailgate outside handle switch (A) by pushing the hooks.
    G13578752Courtesy of KIA MOTORS AMERICA, INC.
