Connector And Terminal Function
WARNING: This page is about a different variant/trim than selected.
[Non-Smart key]
| Pin | Function | ||
|---|---|---|---|
| Connector A | Connector B | Connector C | |
| 1 | Rear view switch (Input) | - | - |
| 2 | Rear washer switch (Input) | - | - |
| 3 | Front washer switch (Input) | RPAS Power (Output) | ATM Solenoid (Output) |
| 4 | Battery + (Power) | Fuel door open switch (Input) | - |
| 5 | - | Sunroof status (Input) | - |
| 6 | Ground (Power) | Light switch (Input) | Kline_Immobilizer |
| 7 | - | Rear wiper switch (Input) | Start inhibit relay (Output) |
| 8 | - | Front wiper volume switch (Input) | Wiper low back up switch Front (Input) |
| 9 | - | - | Key inter lock switch (Input) |
| 10 | PDW (Input) (Option) | Fog switch (Input) | Wiper parking switch (Input) |
| 11 | Battery + (ECU) | Front wiper switch (Input) | Brake switch (Input) |
| 12 | - | Headlamp high switch (Input) | LIN2 (Safety ECU) |
| 13 | - | ACC (Input) | LIN4 (UIP or Siren) |
| 14 | Ground (ECU) | IGN2 (Input) | - |
| 15 | Rear Occupant Alert (Input) (Option) | - | LIN3 (Rain sensor) |
| 16 | - | PAS/RPAS Power (Input) | Wiper low relay_Front (Output) |
| 17 | 3 row seat belt indicator Right (Output) | Wiper high relay_Front (Output) | |
| 18 | Rear center seat belt indicator (Output) | PAS Power_Front (Output) | |
| 19 | - | - | |
| 20 | - | - | |
| 21 | - | Key solenoid (Output) | |
| 22 | - | - | |
| 23 | Key hole illumination (Output) | - | |
| 24 | IGN1 (Input) | Multifunction switch ground (Input) | |
| 25 | - | Key in switch (Input) | |
| 26 | EMS ECU wake up (Output) | Immobilizer antenna power (Output) | |
| 27 | PAS/RPAS Switch (Input) | Immobilizer antenna ground (Output) | |
| 28 | Rear seat belt indicator Right (Output) | - | |
| 29 | Rear seat belt indicator Left (Output) | - | |
| 30 | PAS/RPAS Switch indicator (Output) | Wiper power relay (Output) | |
| 31 | Auto light sensor ground (Output) | - | |
| 32 | Auto light sensor signal (Input) | - | |
| 33 | Auto light sensor power (Output) | Fuel door release switch (Input) | |
| 34 | LIN1 (PAS) | Wiper relay_Rear (Output) | |
| 35 | B-CAN (Low) | P-CAN (High) | |
| 36 | B-CAN (High) | P-CAN (Low) | |
| 37 | 3 row seat belt indicator Left (Output) | ||
| 38 | Fuel door open relay (Output) | ||
| 39 | - | ||
| 40 | - | ||

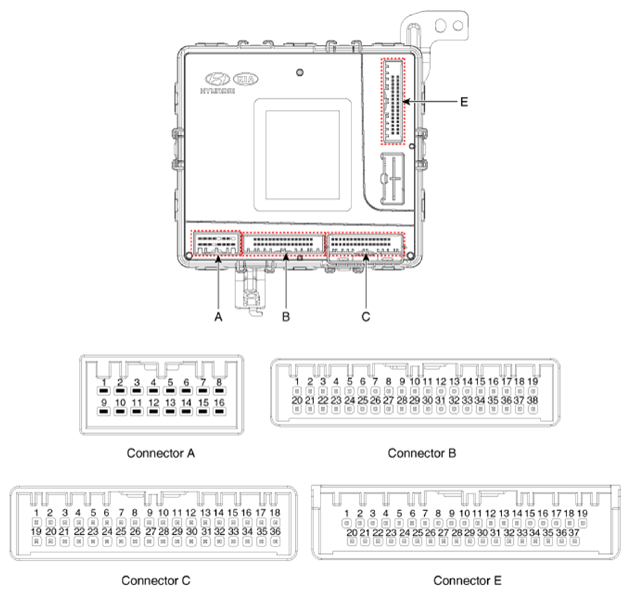

[Smart key]
| Pin | Function | |||
|---|---|---|---|---|
| Connector A | Connector B | Connector C | Connector E | |
| 1 | Rear view switch (Input) | - | - | - |
| 2 | Rear washer switch (Input) | - | - | ACC relay (Output) |
| 3 | Front washer switch (Input) | RPAS Power (Output) | ATM Solenoid (Output) | Starter relay (Output) |
| 4 | Battery + (Power) | Fuel door open switch (Input) | - | IGN1 relay (Output) |
| 5 | - | Sunroof status (Input) | - | ESCL (-) (Output) |
| 6 | Ground (Power) | Light switch (Input) | Kline_Immobilizer | SSB Switch 2 (Input) |
| 7 | - | Rear wiper switch (Input) | Start inhibit relay (Output) | SSB Switch 1 (Input) |
| 8 | - | Front wiper volume switch (Input) | Wiper low back up switch_Front (Input) | Outside handle antenna_Assist (+) (Output) |
| 9 | - | - | Key inter lock switch (Input) | Interior antenna 1 (+) (Output) |
| 10 | PDW (Input) (Option) | Fog switch (Input) | Wiper parking switch (Input) | Interior antenna 2 (+) (Output) |
| 11 | Battery + (ECU) | Front wiper switch (Input) | Brake switch (Input) | Outside handle antenna_Driver (+) (Output) |
| 12 | - | Headlamp high switch (Input) | LIN2 (Safety ECU) | Bumper antenna 3 (+) (Output) |
| 13 | - | ACC (Input) | LIN4 (UIP or Siren) | Trunk interior antenna 3 (+) (Output) |
| 14 | Ground (ECU) | IGN2 (Input) | - | - |
| 15 | Rear Occupant Alert (Input) (Option) | - | LIN3 (Rain sensor) | - |
| 16 | - | PAS/RPAS Power (Input) | Wiper low relay Front (Output) | FRT Bumper antenna (+) (Output) |
| 17 | 3 row seat belt indicator Right (Output) | Wiper high relay Front (Output) | Wheel speed sensor (Input) | |
| 18 | Rear center seat belt indicator (Output) | PAS Power Front (Output) | - | |
| 19 | - | - | - | |
| 20 | - | - | - | |
| 21 | - | Puddle pocket lamp (Output) | - | |
| 22 | - | External buzzer (Output) | IGN2 relay (Output) | |
| 23 | - | - | ESCL (+) (Output) | |
| 24 | IGN1 (Input) | Multifunction switch ground (Input) | ESCL Enable (Output) | |
| 25 | - | - | Start feedback (Input) | |
| 26 | - | Immobilizer antenna power (Output) | Outside handle switch Driver (Input) | |
| 27 | PAS/RPAS Switch (Input) | Immobilizer antenna ground (Output) | Outside handle switch Assist (Input) | |
| 28 | Rear seat belt indicator Right (Output) | - | Outside handle antenna Assist (-) (Output) | |
| 29 | Rear seat belt indicator Left (Output) | - | Interior antenna 1 (-) (Output) | |
| 30 | PAS/RPAS Switch indicator (Output) | Wiper power relay (Output) | Interior antenna 2 (-) (Output) | |
| 31 | Auto light sensor ground (Output) | - | Outside handle antenna Driver (-) (Output) | |
| 32 | Auto light sensor signal (Input) | COM ESCL | Bumper antenna (-) (Output) | |
| 33 | Auto light sensor power (Output) | Fuel door release switch (Input) | Trunk interior antenna 3 (-) (Output) | |
| 34 | LIN1 (PAS) | Wiper relay Rear (Output) | SSB Symbol illumination (+) (Output) | |
| 35 | B-CAN (Low) | P-CAN (High) | - | |
| 36 | B-CAN (High) | P-CAN (Low) | FRT Bumper antenna (-) (Output) | |
| 37 | 3 row seat belt indicator Left (Output) | RPM (Input) | ||
| 38 | Fuel door open relay (Output) | - | ||
| 39 | - | - | ||
| 40 | - | - | ||
