Smart Key Code Saving

WARNING: This page is about a different variant/trim than selected.

Connect the VCI II to the Data Link Connector (DLC).

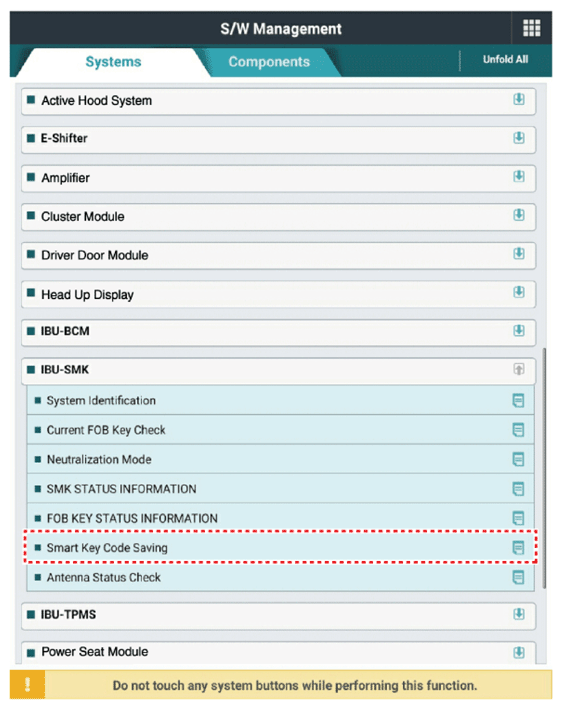

Select the vehicle model and then do "Smart key code saving".

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

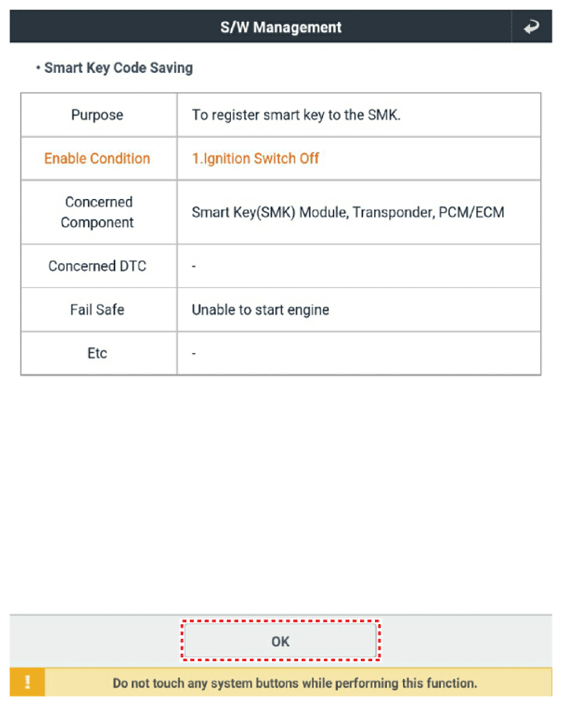

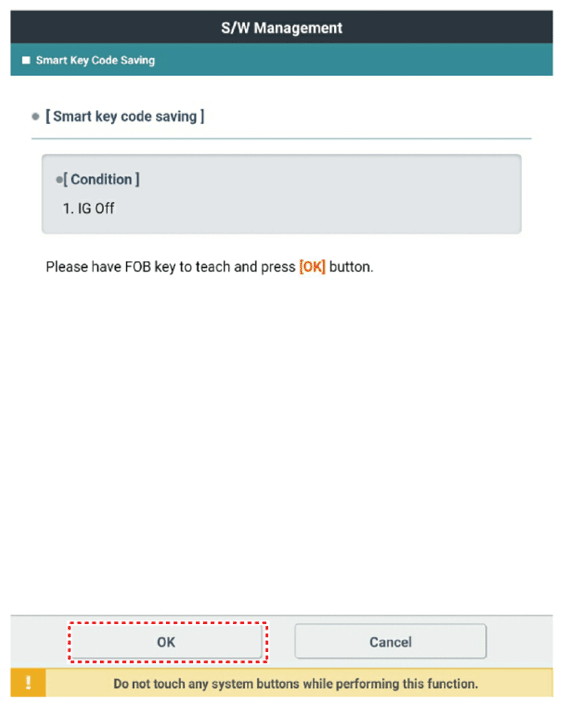

After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

Courtesy of KIA MOTORS AMERICA, INC.
After having the teaching smart key, push "ENTER" key.

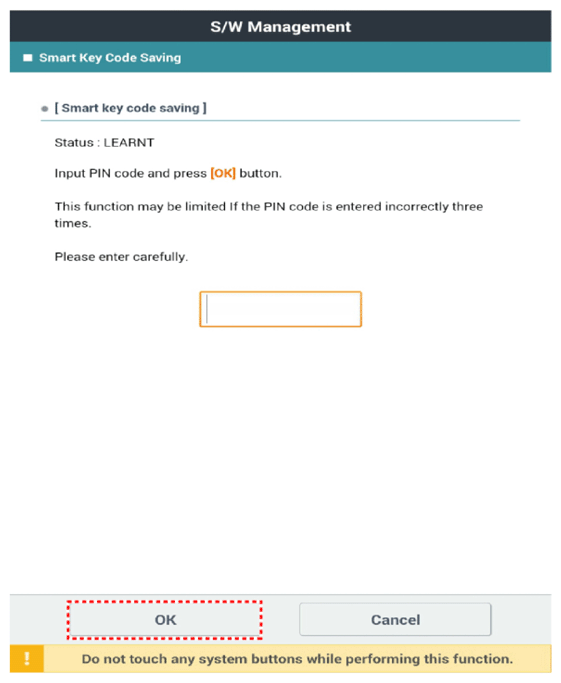

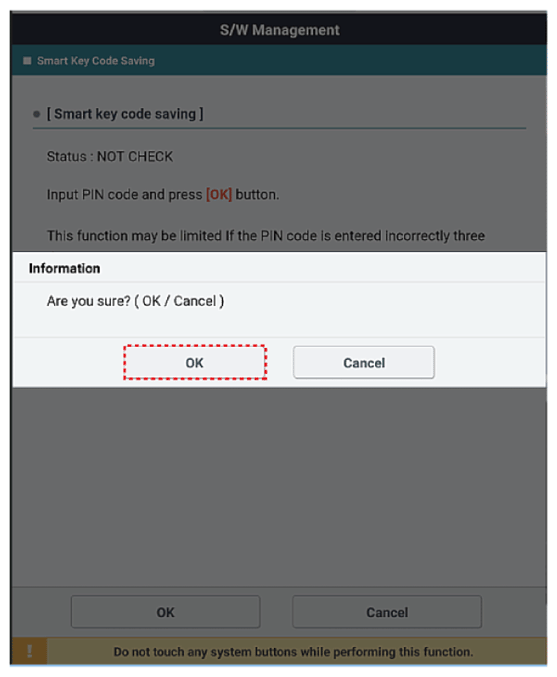

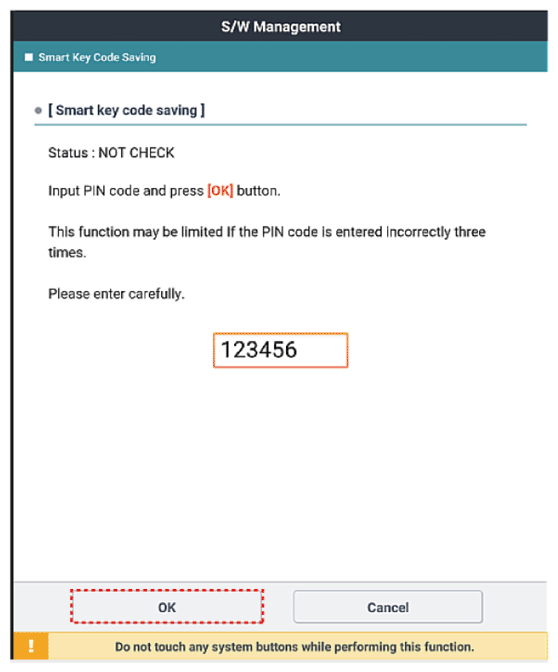

Input the "Pin code" for first key teaching.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

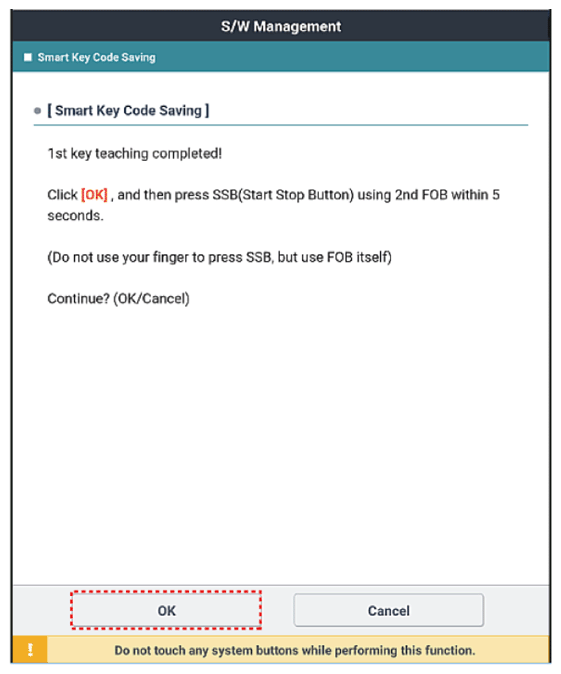

Confirm the message "First key teaching completed".

Courtesy of KIA MOTORS AMERICA, INC.

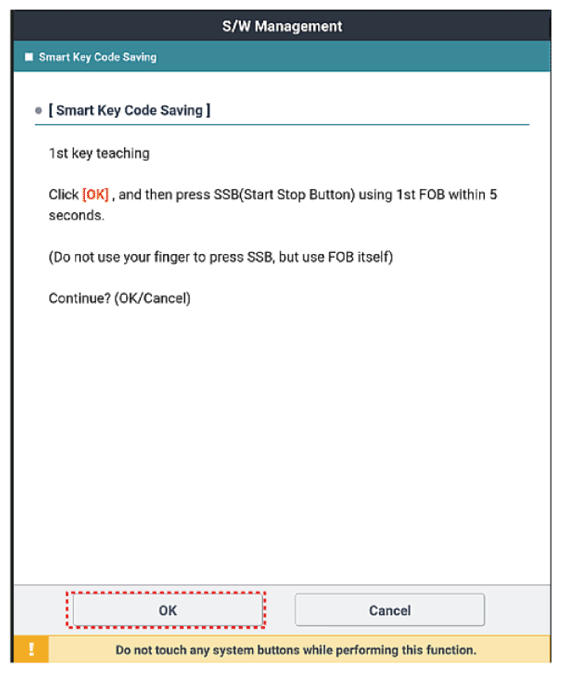

Press the SSB with smart key within 5 sec after pressing "OK".

Courtesy of KIA MOTORS AMERICA, INC.

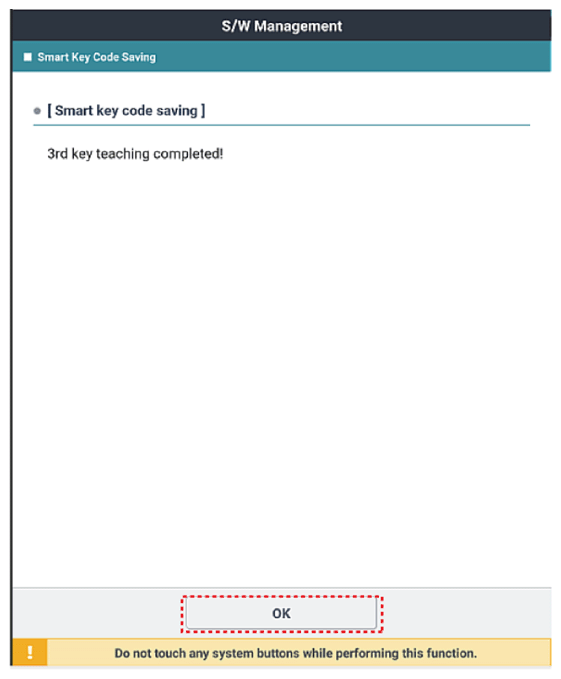

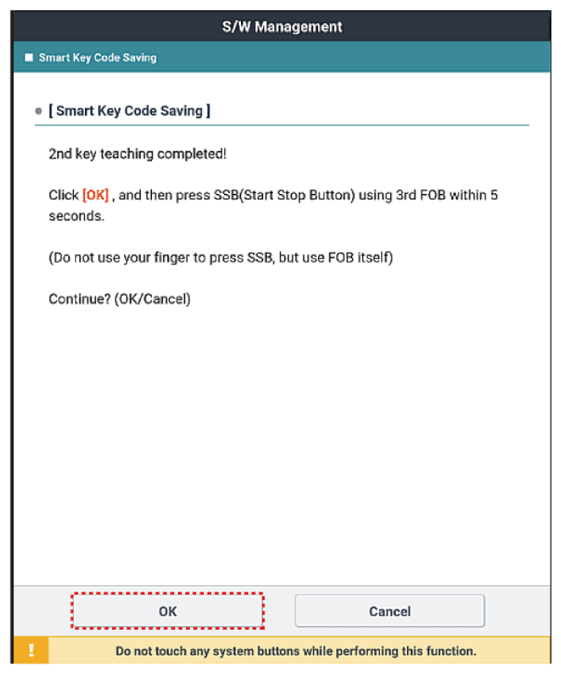

Confirm the message "Second key teaching completed".

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

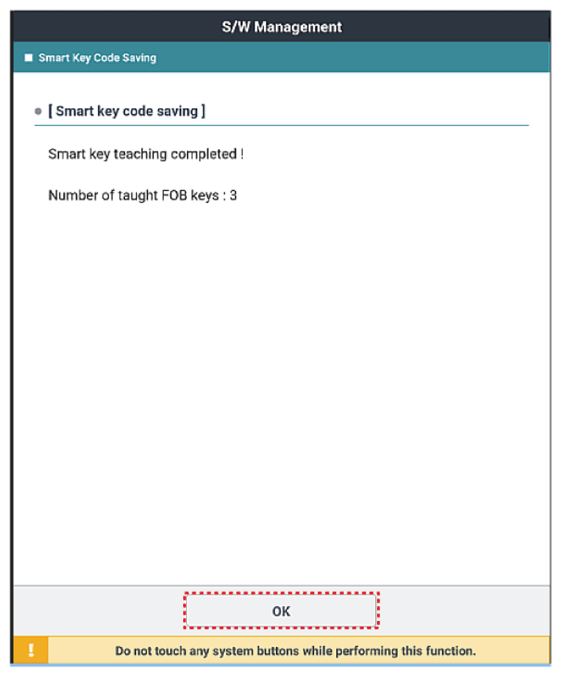

Then the screen will be shown as below when key teaching process is completed.

Courtesy of KIA MOTORS AMERICA, INC.
