Connector And Terminal Function

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

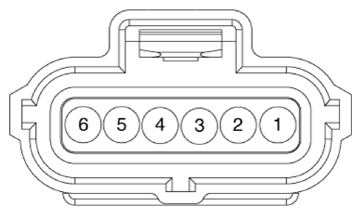

G14956925Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
1 APS 2 ground
2 APS 1 ground
3 APS 1 signal
4 APS 1 power (5 V)
5 APS 2 power (5 V)
6 APS 2 signal
