Removal And Installation

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

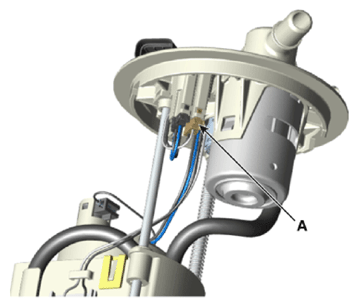

  2. Disconnect the fuel sender connector (A).
    G13280965Courtesy of KIA MOTORS AMERICA, INC.

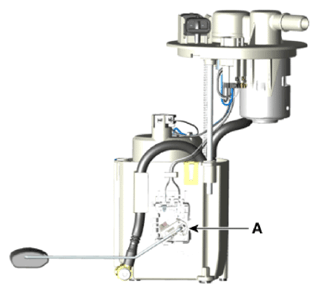

  3. Remove the fuel sender (A).
    G13280966Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
