Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

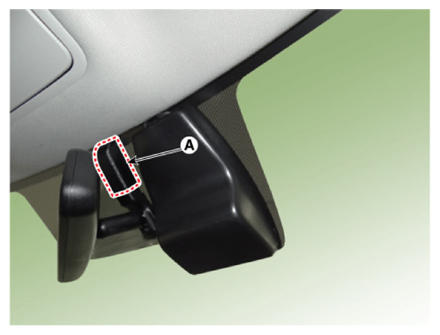

  2. Remove the inside rear view mirror cover (A).
    G13282434Courtesy of KIA MOTORS AMERICA, INC.

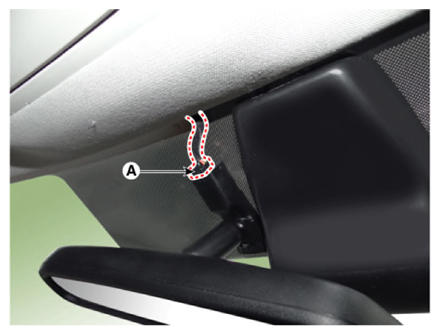

  3. Disconnect the inside rear view mirror connector (A).
    G13282435Courtesy of KIA MOTORS AMERICA, INC.

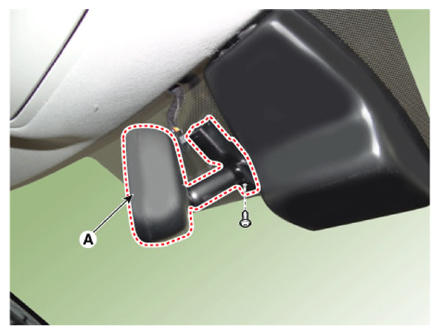

  4. Remove the inside rear view mirror (A) after loosening the screw.
G13282436Courtesy of KIA MOTORS AMERICA, INC.
