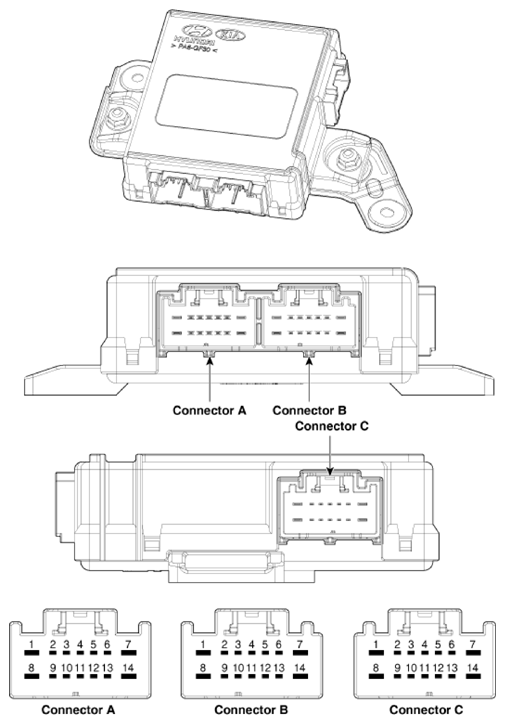

| 1 |
Power supply |
Cinching motor (+) |
Spindle motor (RH)_Close (-) |
| 2 |
Illumination (Tailgate inner switch) |
Tailgate full open switch |
Hall sensor (RH)_Power |
| 3 |
- |
Tailgate full lock switch |
Spindle (LH) shield_Ground |
| 4 |
B-CAN (High) |
Tailgate half lock switch |
Hall sensor (RH)_Ground |
| 5 |
B-CAN (Low) |
Home position switch_Ground |
Spindle (RH) shield_Ground |
| 6 |
Buzzer |
Tailgate latch switch _Ground |
Hall sensor (LH)_Power |
| 7 |
- |
System ground |
Spindle motor (LH)_Close (+) |
| 8 |
Tailgate motor |
Cinching motor (-) |
Spindle motor (RH)_Close (+) |
| 9 |
- |
Tailgate open/close switch |
Hall sensor 1 (RH) |
| 10 |
Gear 'N' Position |
Tailgate inner switch |
Hall sensor 2 (RH) |
| 11 |
- |
Home position switch |
Hall sensor (LH)_Ground |
| 12 |
Antipinch strip (LH)_Power |
Antipinch strip (LH)_Ground |
Hall sensor 1 (LH) |
| 13 |
Antipinch strip (RH)_Power |
Antipinch strip (RH)_Ground |
Hall sensor 2 (LH) |
| 14 |
- |
Power ground |
Spindle motor (LH)_Close (-) |
