Repair Procedures: Removal

  1. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

  2. Remove the horn (A) by disconnecting the connector after removing the mounting bolts.

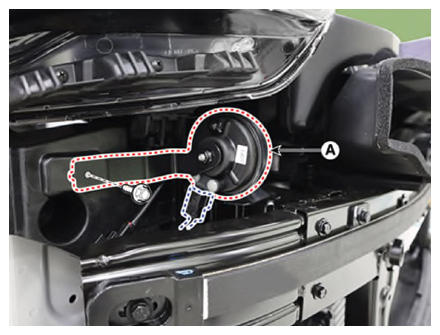

    [Low - Pitch Horn]

    G14998085Courtesy of KIA MOTORS AMERICA, INC.

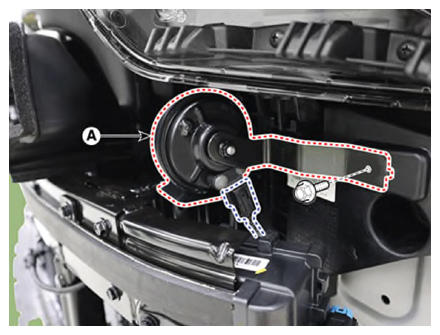

    [High - Pitch Horn]

G14998086Courtesy of KIA MOTORS AMERICA, INC.
