Engine Starting System - 2.5L
›
Troubleshooting
›

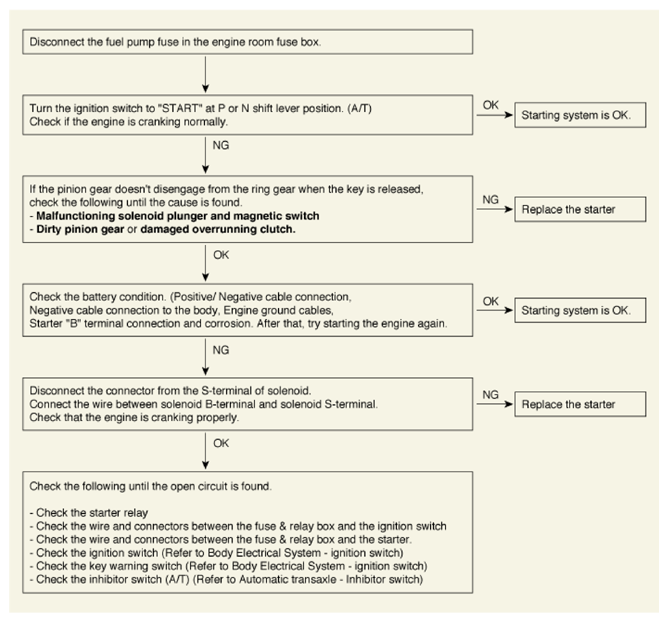

Troubleshooting Chart
Troubleshooting Chart
NOTE:
The battery must be in good condition and fully charged for this troubleshooting.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
