Repair Procedures: Installation

NOTE:

Install the Crankshaft Position Sensor (CKPS) with the specified torque.

If CKPS is dropped, it may cause internal damage. Do not use it.

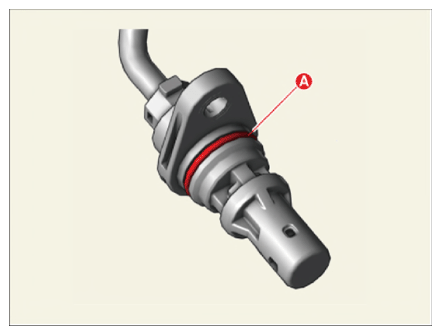

Install the CKPS after applying the engine oil to the O-ring (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install the CKPS by pushing it into the installation hole firmly. and be careful not to damage the sensor.

Install in the reverse order of removal.
