Smart Key Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

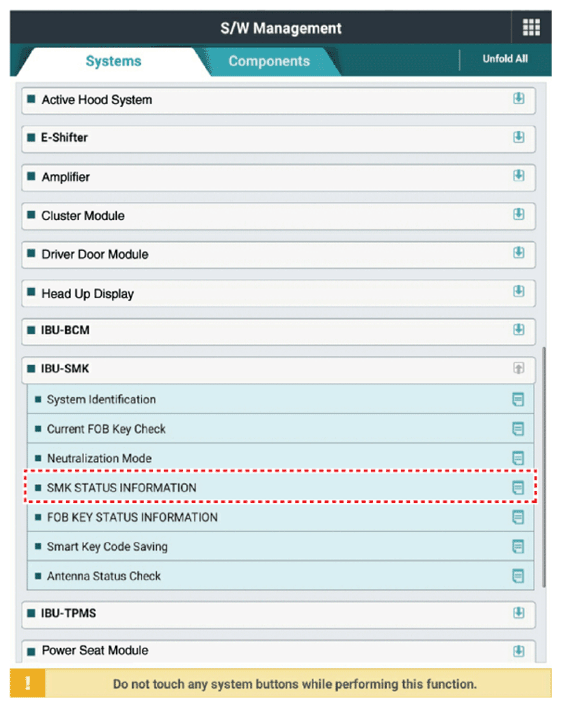

G14998481Courtesy of KIA MOTORS AMERICA, INC.

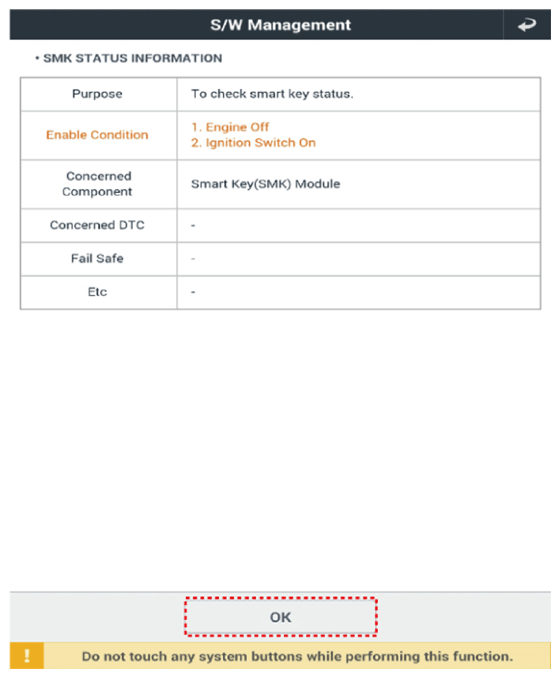

G14998482Courtesy of KIA MOTORS AMERICA, INC.

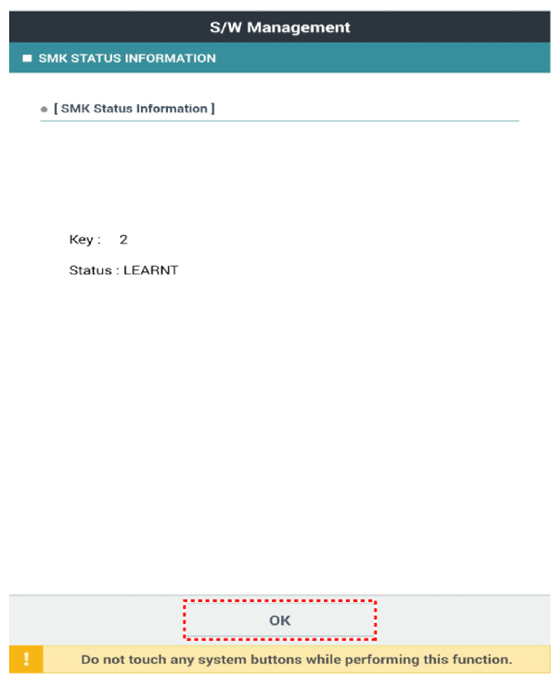

G14998483Courtesy of KIA MOTORS AMERICA, INC.
