Repair Procedures: Removal: 400W
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the crash pad center panel.
(Refer to Body - "CRASH PAD CENTER PANEL ")

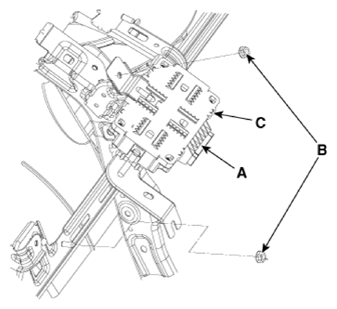

- Disconnect the DC/DC converter connector (A), and then loosening the mounting nuts (B).
- Remove the DC/DC converter (C).
