On Vehicle Inspection

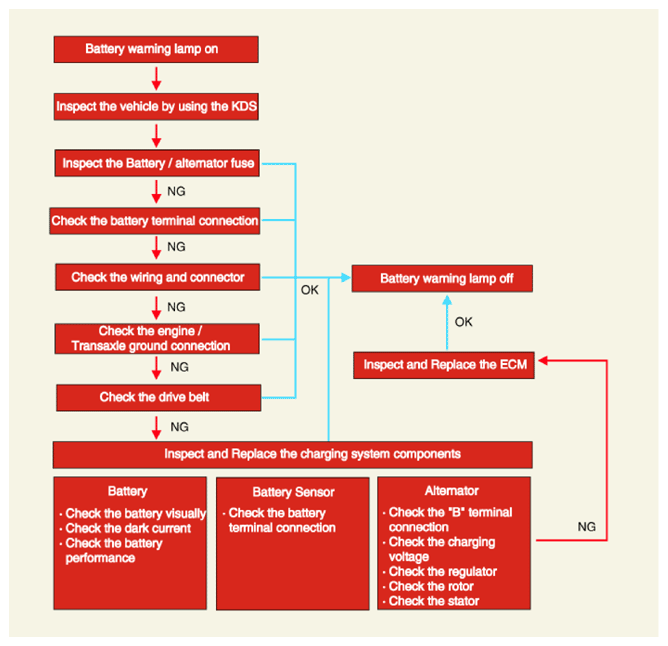

G14796971Courtesy of KIA MOTORS AMERICA, INC.
  1. The engine control system can be more quickly diagnosed for problems by using the KDS. (Refer to "DTC guide")
    1. Self diagnosis: Checking failure and Diagnosis Trouble Code (DTC)
    2. Data analysis: Checking the system input/output data state
    3. Actuation test: Checking the system operation condition
    4. Software Management: Controlling other features including system option setting and Zero-Adjustment
  2. Check the continuity of the fuse (A).

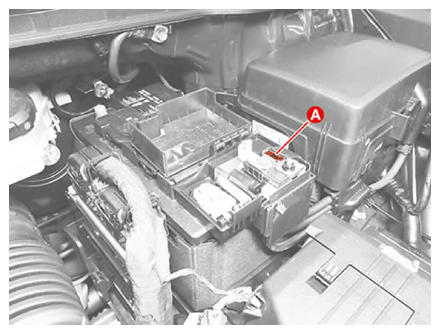

    Alternator fuse

    G14796972Courtesy of KIA MOTORS AMERICA, INC.

    Battery fuse

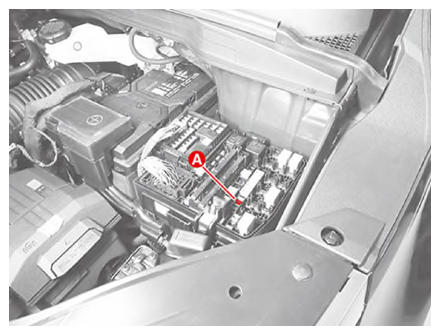

    G14796973Courtesy of KIA MOTORS AMERICA, INC.
  3. Check the battery terminal for corrosion and connection.
    NOTE:
    • Check the alternator "B" terminal condition.
    • Check the alternator "B" terminal for tightening nut.
    • Check the Battery positive (+), negative (-) terminal condition.
    • Check Battery positive (+), negative (-) terminal for tightening nut.
    • Check the ground cable on the body for tightening bolt.
    • Check the engine room & relay box positive (+) cable condition.
    • Check the engine room & relay box negative (-) cable for tightening nut.
    • Check the ground connection condition.

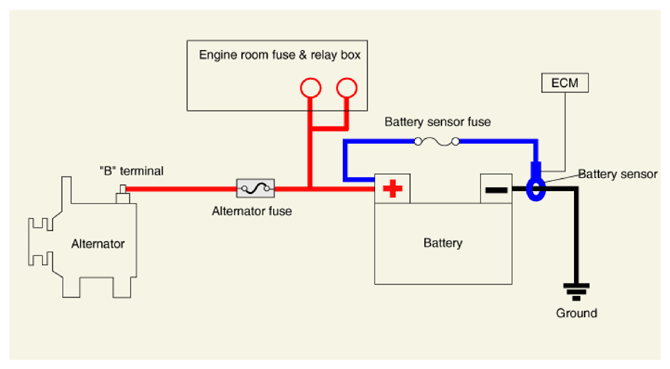

    G14796974Courtesy of KIA MOTORS AMERICA, INC.
  4. Check the connector connection, contact defect, bending, corrosion, deformation or damage.
  5. Check the condition of engine ground cable (A) and tight to specified torque.

    Tightening torque:

    26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 lb.ft)

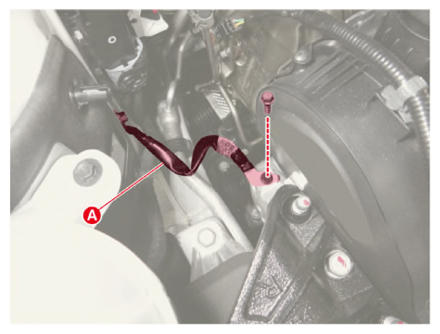

    G14796975Courtesy of KIA MOTORS AMERICA, INC.
  6. Check the condition of transaxle ground cable (A) and tight to specified torque.

    Tightening torque:

    26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 lb.ft)

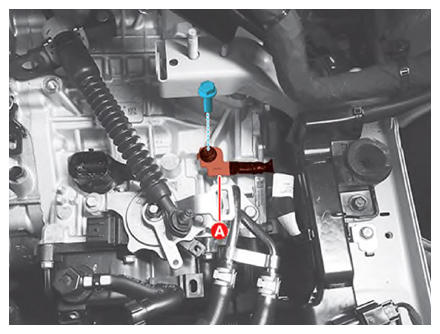

    G14796976Courtesy of KIA MOTORS AMERICA, INC.
  7. Inspect the drive belt.

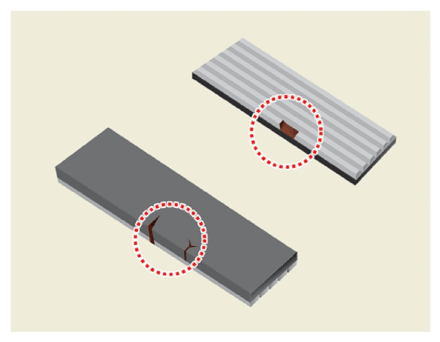

    G14796977Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Replace the belt when the belt cracks and damages.
  8. Check the charging system components
