Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 5

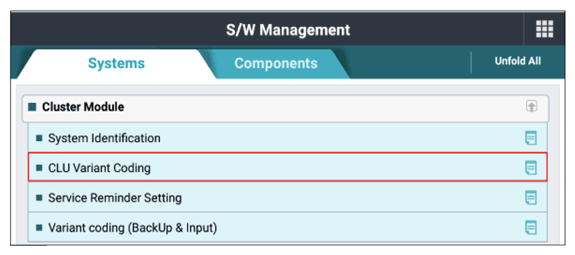

G14780803Courtesy of KIA MOTORS AMERICA, INC.

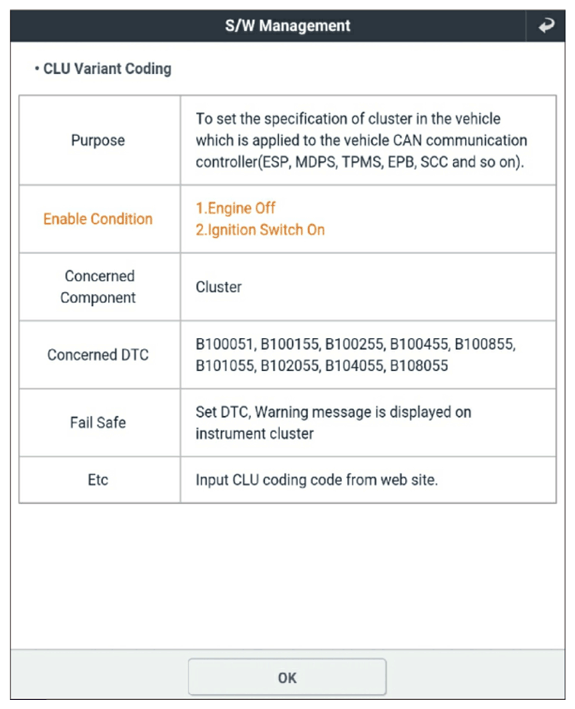

G14780804Courtesy of KIA MOTORS AMERICA, INC.

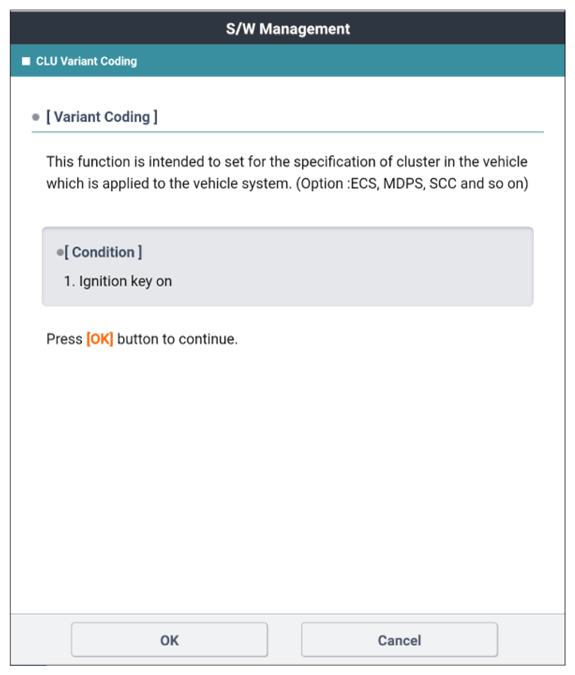

G14780805Courtesy of KIA MOTORS AMERICA, INC.

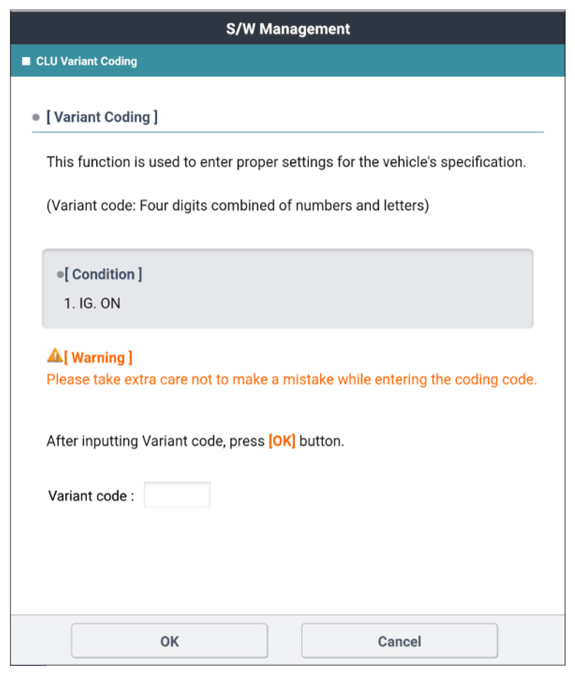

G14780806Courtesy of KIA MOTORS AMERICA, INC.

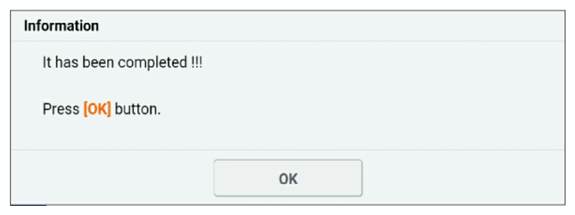

G14780807Courtesy of KIA MOTORS AMERICA, INC.
