Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig. 1 to 5

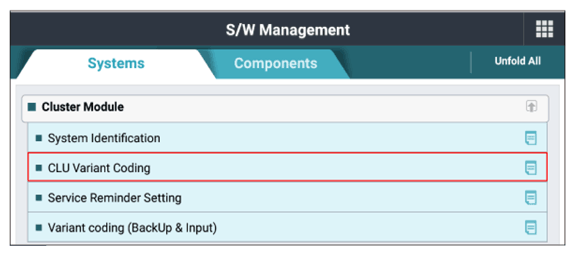

G14780909Courtesy of KIA MOTORS AMERICA, INC.

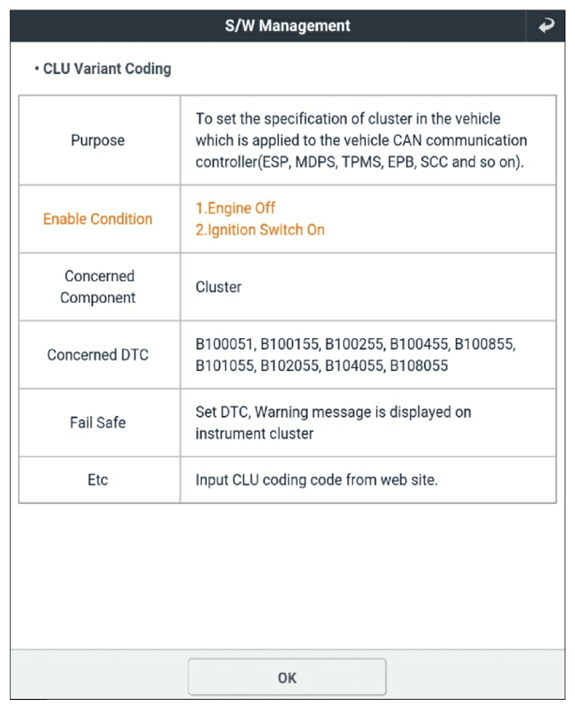

G14780910Courtesy of KIA MOTORS AMERICA, INC.

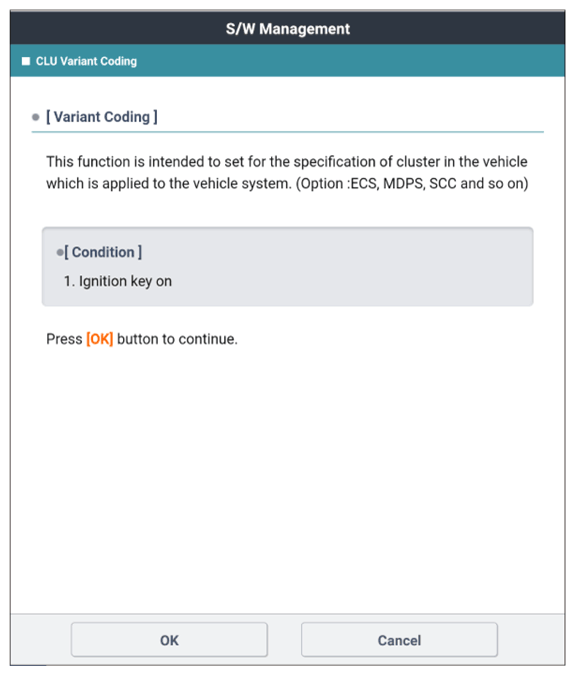

G14780911Courtesy of KIA MOTORS AMERICA, INC.

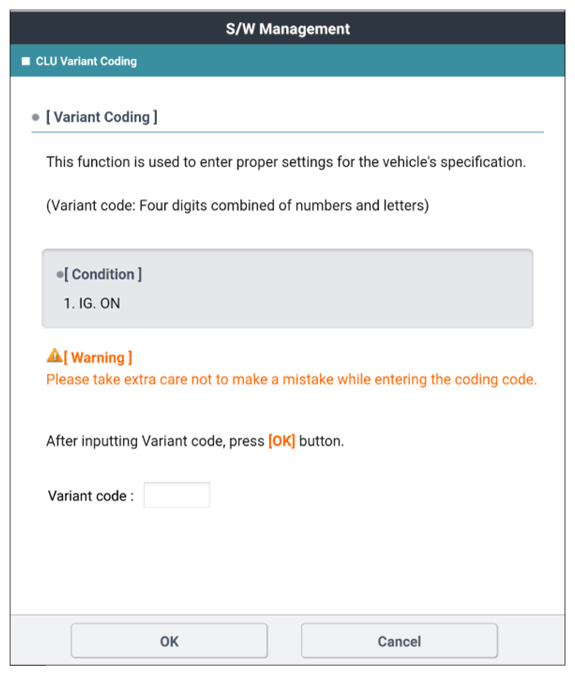

G14780912Courtesy of KIA MOTORS AMERICA, INC.

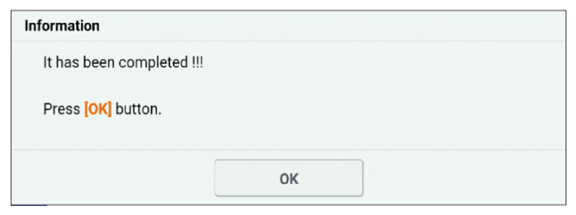

G14780913Courtesy of KIA MOTORS AMERICA, INC.
