Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig. 1 to 5

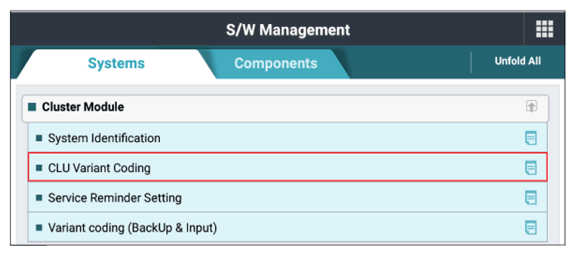

G14780931Courtesy of KIA MOTORS AMERICA, INC.

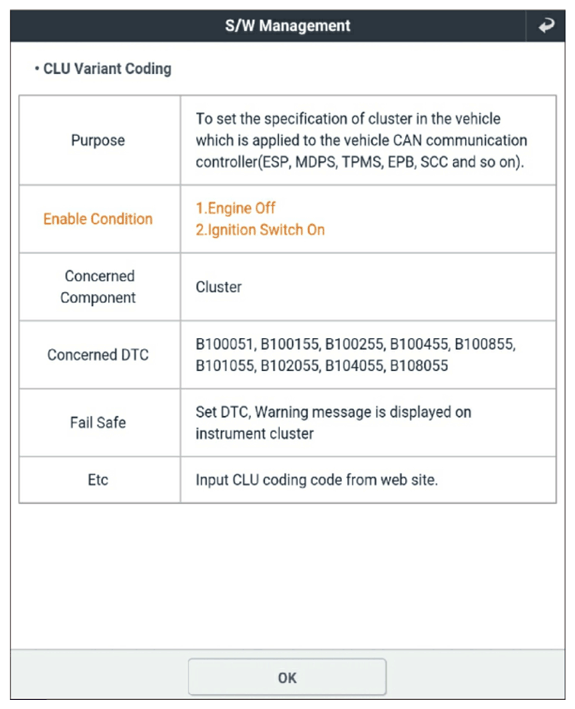

G14780932Courtesy of KIA MOTORS AMERICA, INC.

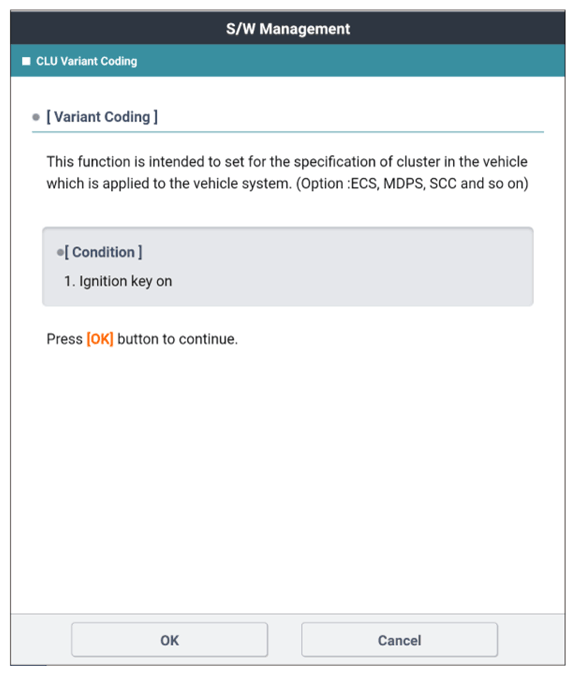

G14780933Courtesy of KIA MOTORS AMERICA, INC.

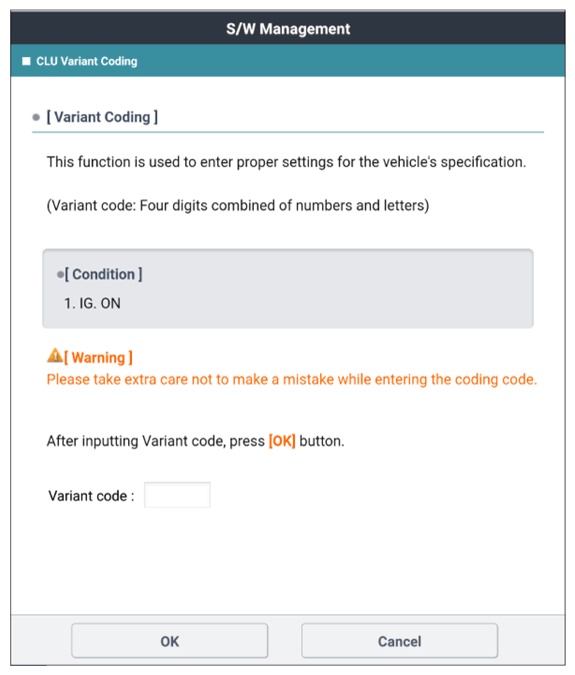

G14780934Courtesy of KIA MOTORS AMERICA, INC.

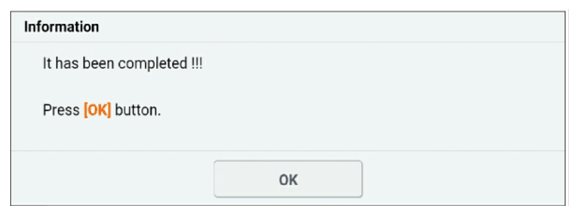

G14780935Courtesy of KIA MOTORS AMERICA, INC.
