Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
  3. Select "Clear Learning Value" in "Vehicle S/W management".
  4. After operation, perform the "VERIFICATION OF REPAIR" procedure.
 Fig. 1 to 4
G14807852Courtesy of KIA MOTORS AMERICA, INC.

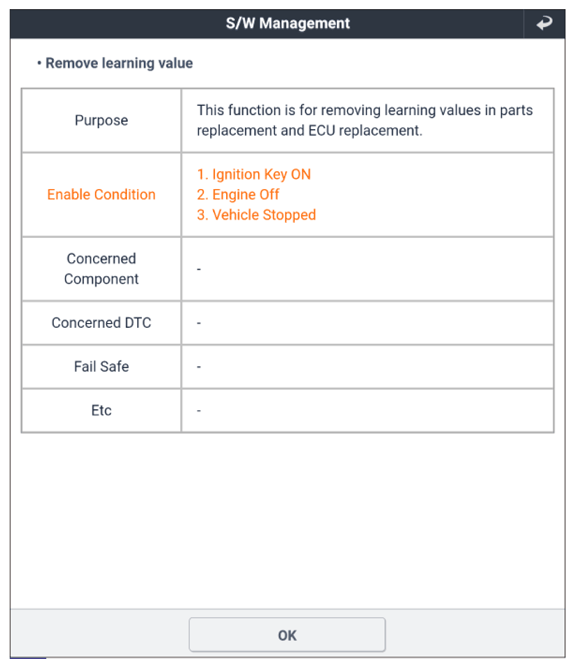

G14807853Courtesy of KIA MOTORS AMERICA, INC.

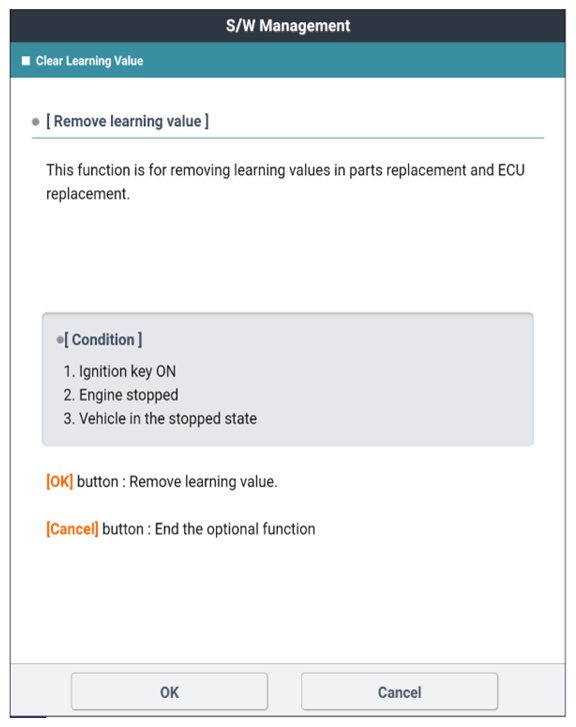

G14807854Courtesy of KIA MOTORS AMERICA, INC.
G14807855Courtesy of KIA MOTORS AMERICA, INC.
