Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference

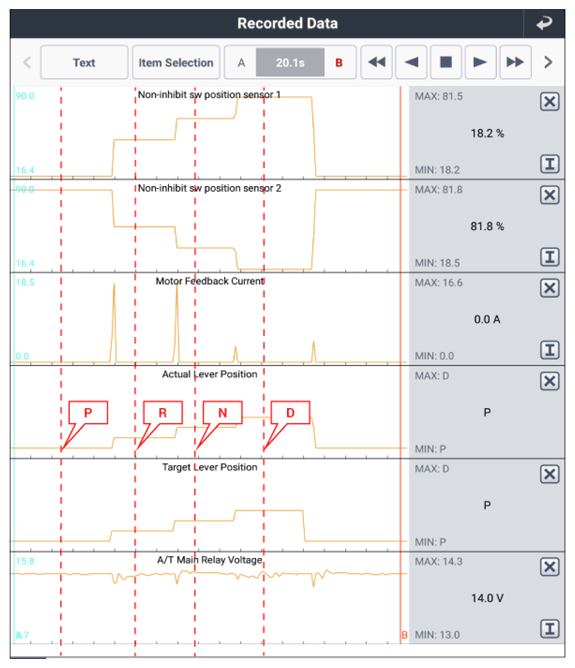

Engine "ON".	Connect KDS to "Data Link Connector (DLC)". Monitor parameters in "Current Data" with KDS.	Fig. 1

G14807864

Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

Check if the reprogramming has proceeded to an unauthorized ROM and if the data has been tampered with.
If the problem persists, replace the SCU and Go to "VERIFICATION OF REPAIR " procedure.

If replacing the SCU, carry out the "Vehicle S/W Management" procedure.

History/Pending Fault

Fault is intermittent caused by poor contact in the sensor's and/or SCU connector or was repaired and SCU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and Go to "VERIFICATION OF REPAIR " procedure.
