Tailgate Lock Module
- Remove the tailgate lid trim.
(Refer to Body - " TAILGATE LID TRIM ")
- Disconnect the tailgate latch connector.

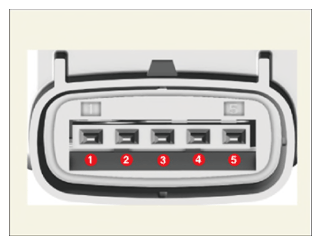

- Check actuator operation by connecting power and ground as shown in the table below.
| Terminal | Function | ||
|---|---|---|---|
| Full Lock | Half Lock | Full Open | |
| 1 | + | X | X |
| 2 | - | X | X |
| 5 - 3 | OFF | OFF | ON |
| 4 - 3 | OFF | ON | ON |
