Front Door Lock Module

  1. Remove the front door module.

    (Refer to Body - " FRONT DOOR MODULE  ")

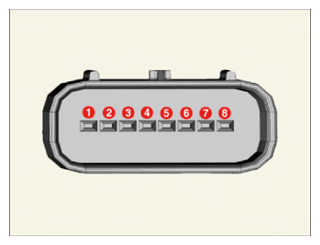

  2. Disconnect the connector from the door lock actuator.
    G15812702Courtesy of KIA MOTORS AMERICA, INC.
    TERMINAL AND FUNCTION DESCRIPTION

    Terminal Function
    LH RH
    1 - M3
    2 - M2
    3 COM M1
    4 Lock/Unlock switch Switch (AJAR)
    5 Switch (AJAR) Lock/Unlock switch
    6 M1 COM
    7 M2 -
    8 M3 -
  3. Check actuator operation by connecting power and ground as shown in the table below.

[Central Lock]

TERMINAL AND FUNCTION DESCRIPTION

Terminal Function
Central Lock Central Unlock
8 - +
7 + -
3 - 4 ON → OFF OFF → ON
3 - 5 Door open & half latching: ON
Full latching: OFF
TERMINAL AND FUNCTION DESCRIPTION

Terminal Function
Central Lock Central Unlock
1 + -
2 - +
6 - 5 ON → OFF OFF → ON
6 - 4 Door open & half latching: ON Full latching: OFF

[Dead Lock]

TERMINAL AND FUNCTION DESCRIPTION

Terminal Function
Lock Dead Unlock Dead
8 - +
7 - +
6 + -
TERMINAL AND FUNCTION DESCRIPTION

Terminal Function
LockDead UnlockDead
1 - +
2 - +
4 + -
