Component element

Courtesy of KIA MOTORS AMERICA, INC.

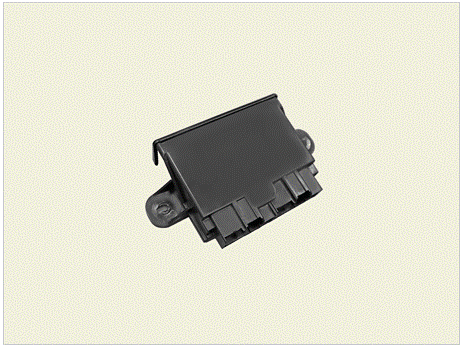

PTGM is installed inside the left side luggage side trim of the back.

PTG drive unit drives the 2 actuators (Spindles) by using the driving motors.

Also it controls anti pinching functions by analyzing the hall sensor and anti pinch sensor of the inside spindles unit.

Courtesy of KIA MOTORS AMERICA, INC.

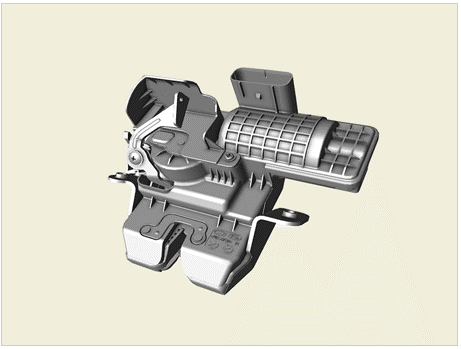

Power tailgate latch assembly is installed at the end of the tailgate and operates power lock/unlock mode according to the power tailgate module (PTGM) 's control.

Courtesy of KIA MOTORS AMERICA, INC.

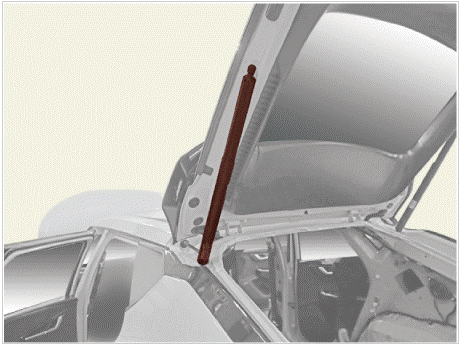

Power tailgate drive unit controls the tailgate's opening and closing using the rotation power of the motor is installed inside.

Recognize the tailgate's driving direction by sending motor's revolving direction signal inside of PTG drive unit to PTGM.

Courtesy of KIA MOTORS AMERICA, INC.

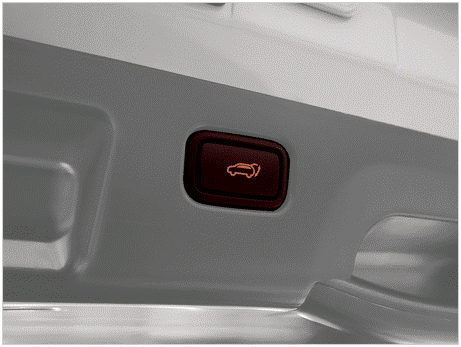

If the switch inside of the tailgate is pushed, the tailgate will start the power closing function.

Courtesy of KIA MOTORS AMERICA, INC.

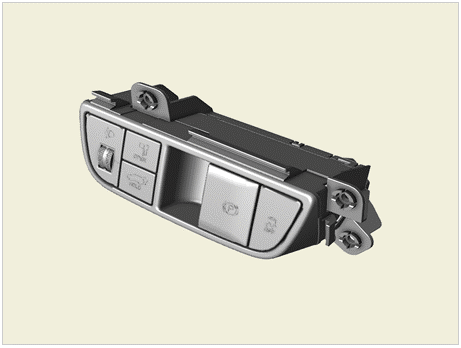

If the power tailgate inner switch is pushed, the tailgate will start the power closing function.

Courtesy of KIA MOTORS AMERICA, INC.

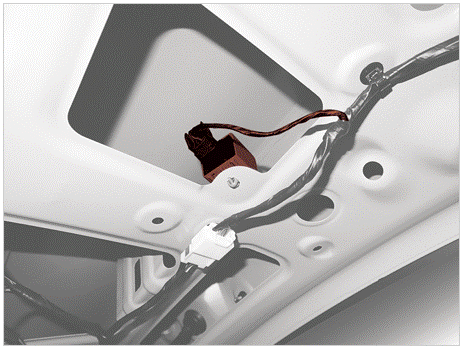

When an obstacle is detected or power function is not performed properly in according to user's order, the alarming buzzer will sound.
