Smart Key Unit: Inspection: Buzzer

1. Remove the front bumper assembly.

   (Refer to Body - "FRONT BUMPER ASSEMBLY ")

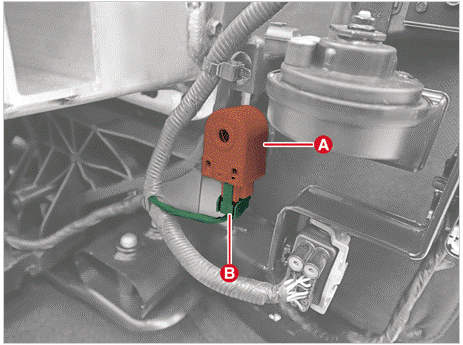

2. Disconnect the connector (B) from buzzer (A).

   Courtesy of KIA MOTORS AMERICA, INC.

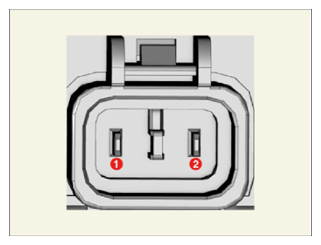

3. Check for continuity between the terminals.

Courtesy of KIA MOTORS AMERICA, INC.
