Removal And Installation: Removal

1. Remove the console upper cover assembly.

   (Refer to Body - " CONSOLE UPPER COVER  ")

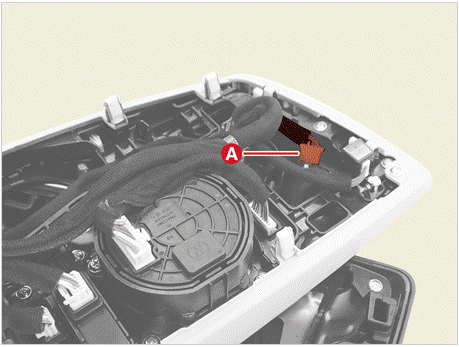

2. Disconnect the start/stop button (SSB) connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

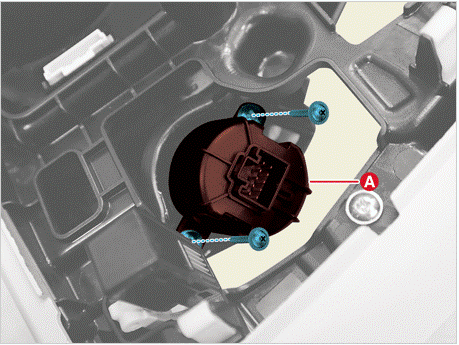

3. Remove the SSB (A) after removing the screws.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
