Trunk Lock Module 4DR
- Remove the trunk lid trim.
(Refer to Body - "TRUNK LID TRIM ")
- Disconnect the connector from the trunk lid latch.

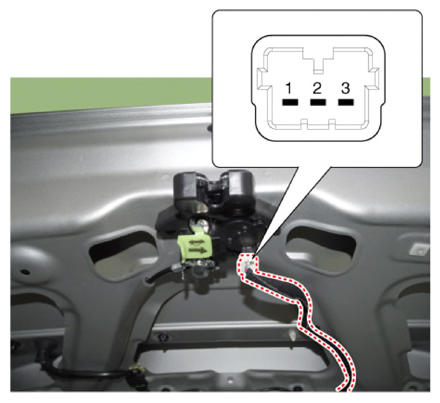

- Check actuator operation by connecting power and ground as shown in the illustration below. To prevent damage to the actuator, apply battery voltage only momentarily.
