Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the auto light sensor (A) from the main crash pad.
    G14563654Courtesy of KIA MOTORS AMERICA, INC.

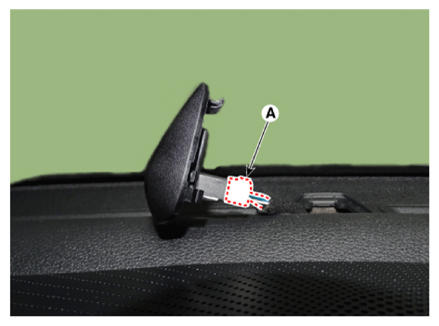

  3. Disconnect the connector (A) from the auto light sensor.
    G14563655Courtesy of KIA MOTORS AMERICA, INC.
