Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

[Gasoline 1.6 T-GDI]

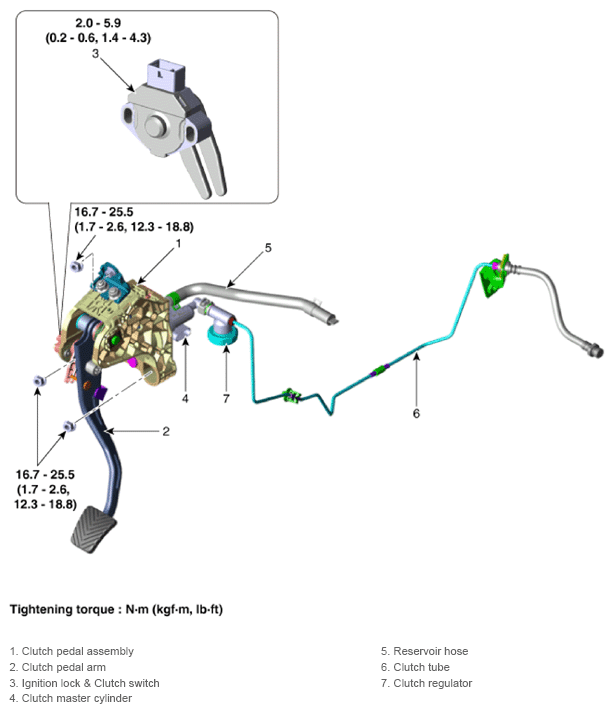

Fig 1: Clutch Pedal Components Location With Torque Specification (Gasoline 1.6 T-GDI)

Courtesy of KIA MOTORS AMERICA, INC.
