Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to Data Link Connector (DLC). Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.	Fig.1 to 8

Vehicle S/W Management

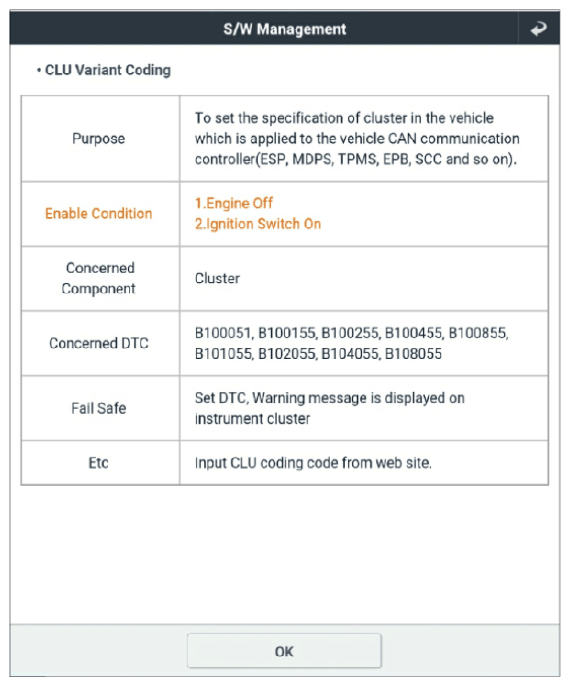

G14565530

Courtesy of KIA MOTORS AMERICA, INC.

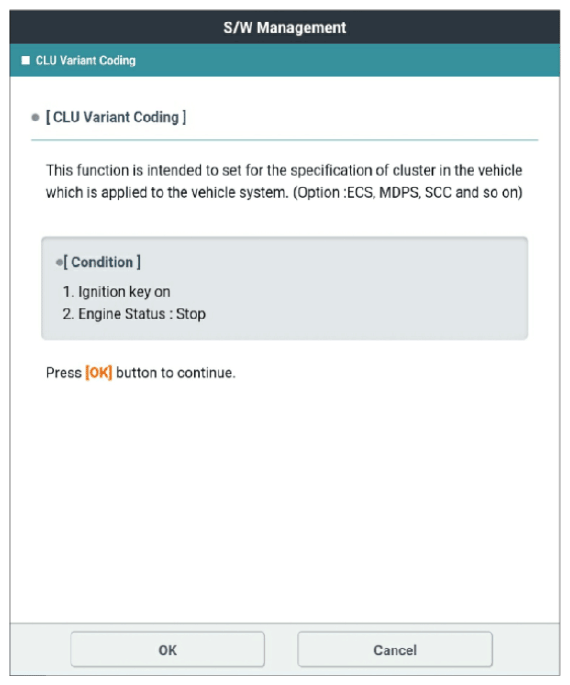

G14565531

Courtesy of KIA MOTORS AMERICA, INC.

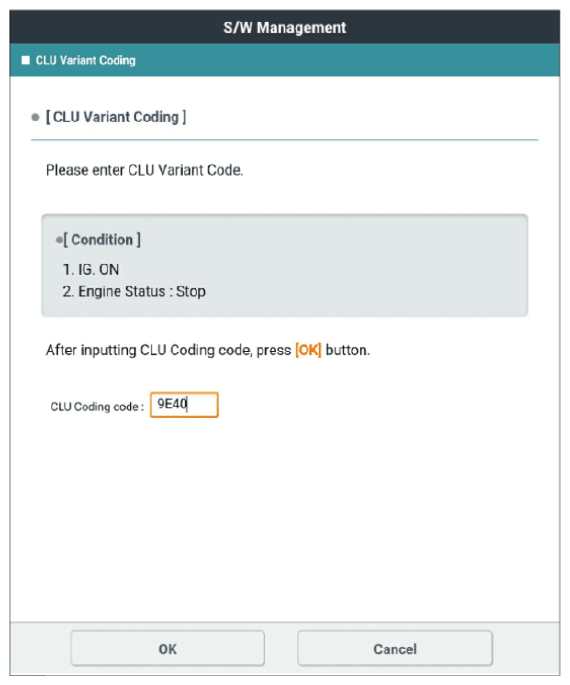

G14565532

Courtesy of KIA MOTORS AMERICA, INC.

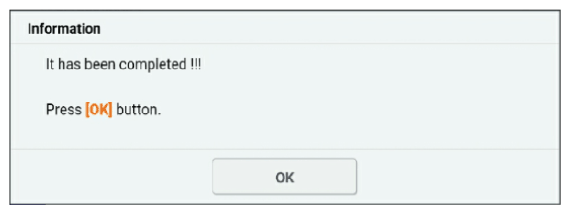

G14565533

Courtesy of KIA MOTORS AMERICA, INC.

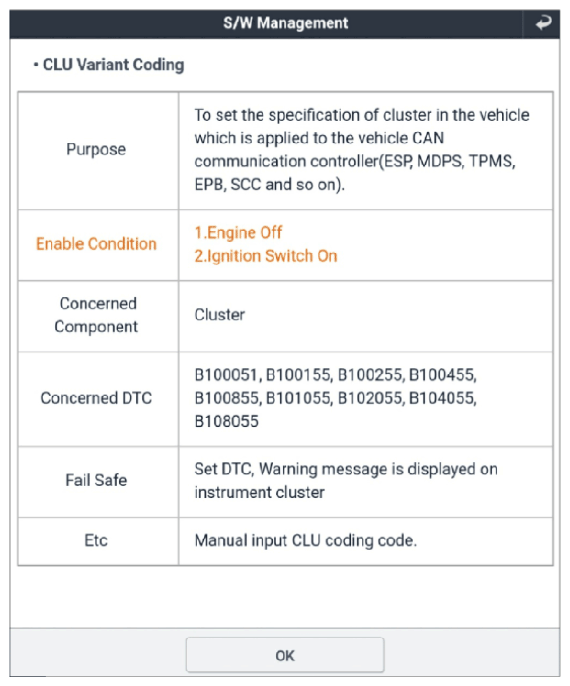

G14565534

Courtesy of KIA MOTORS AMERICA, INC.

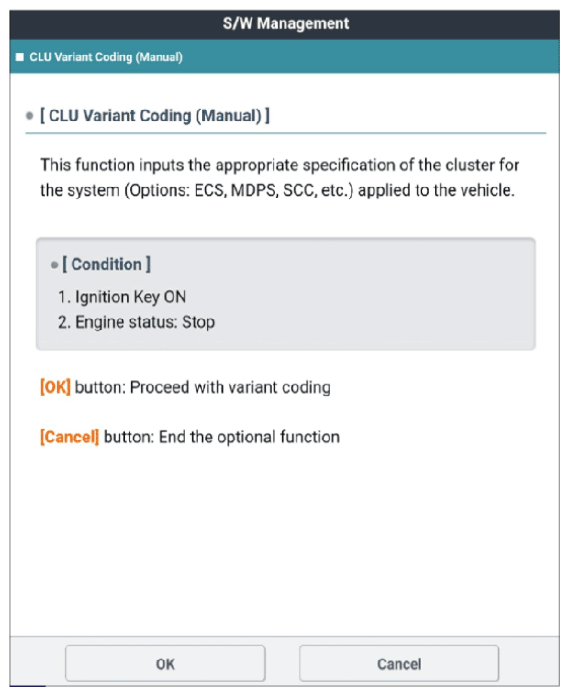

G14565535

Courtesy of KIA MOTORS AMERICA, INC.

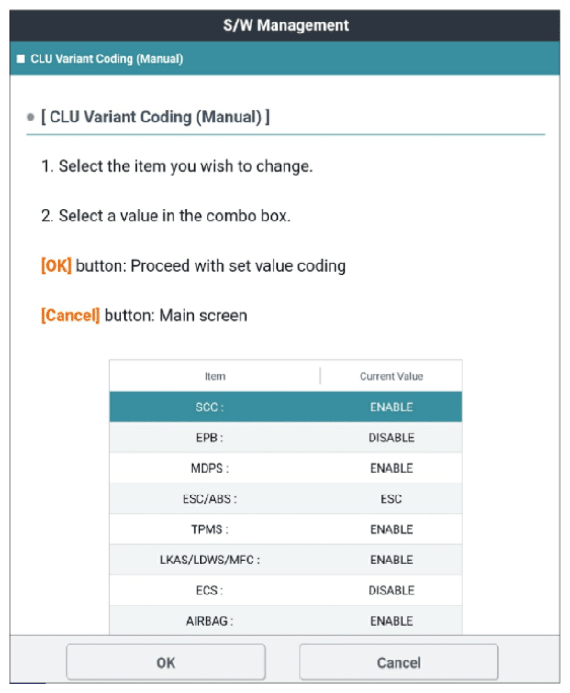

G14565536

Courtesy of KIA MOTORS AMERICA, INC.

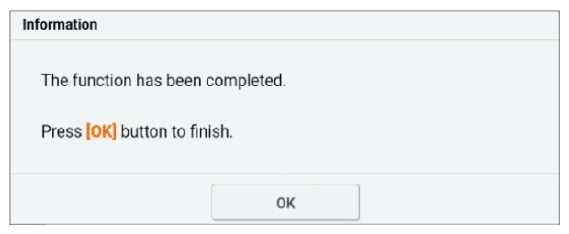

G14565537

Courtesy of KIA MOTORS AMERICA, INC.
