Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

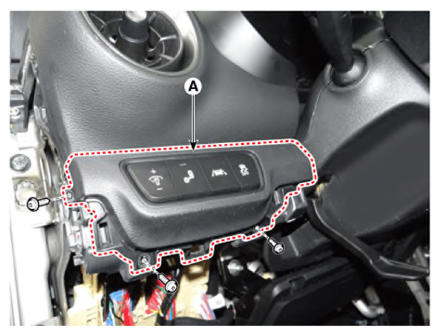

  3. Remove the crash pad side switch assembly (A) after loosening the mounting screws.
    G14563811Courtesy of KIA MOTORS AMERICA, INC.

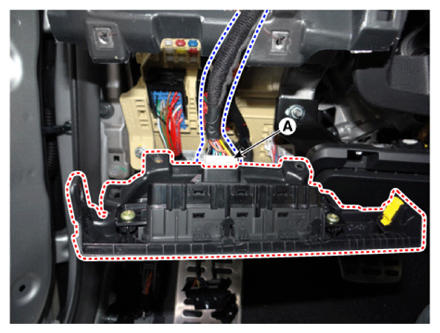

  4. Disconnect the crash pad side switch assembly connector (A).
    G14563812Courtesy of KIA MOTORS AMERICA, INC.

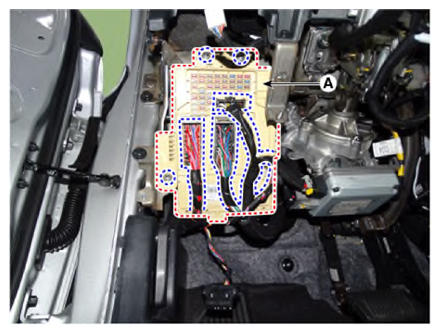

  5. Remove the ICU (A) by loosening the nuts after disconnecting the connector.
    G14563813Courtesy of KIA MOTORS AMERICA, INC.

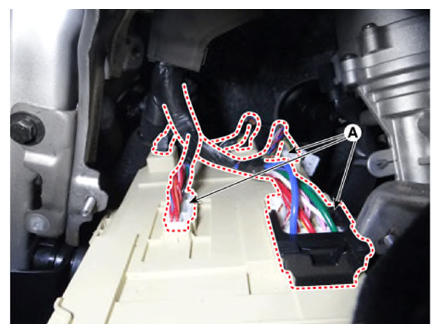

  6. Disconnect the connector (A) from the ICU.
    G14563814Courtesy of KIA MOTORS AMERICA, INC.
