Component Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

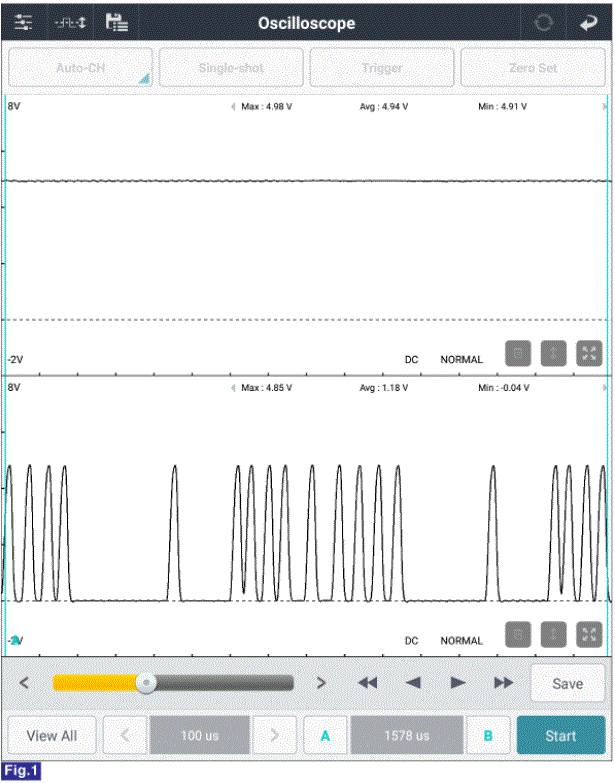

MAFS connector | 1 (power) | Chassis ground | - | Figure below |
| MAFS connector | 3 (signal) | Chassis ground | - | ||
Good
- Go to "Verification Of Repair " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the MAFS and go to "Verification Of Repair " procedure.
