Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to Data Link Connector (DLC). Ignition "ON". Select correct vehicle model, year, and engine type. Select "Engine", "A/T", "4WD" and "ESP", "CLU" system. (1) Select "Fault Code Searching". (2)	Fig.1 to 2

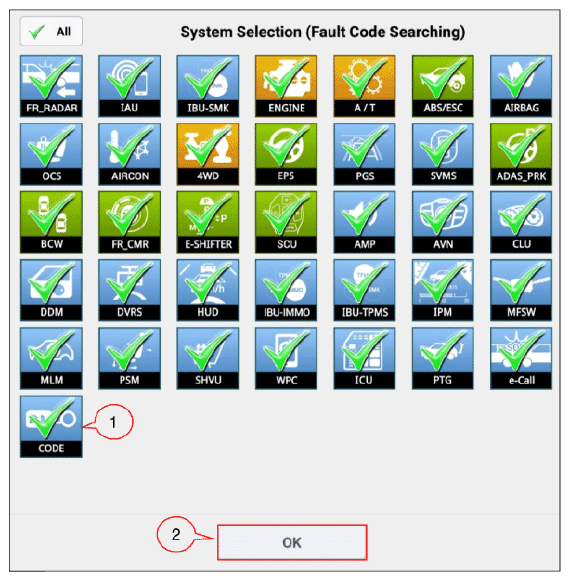

G13807560

Courtesy of KIA MOTORS AMERICA, INC.

G13807561

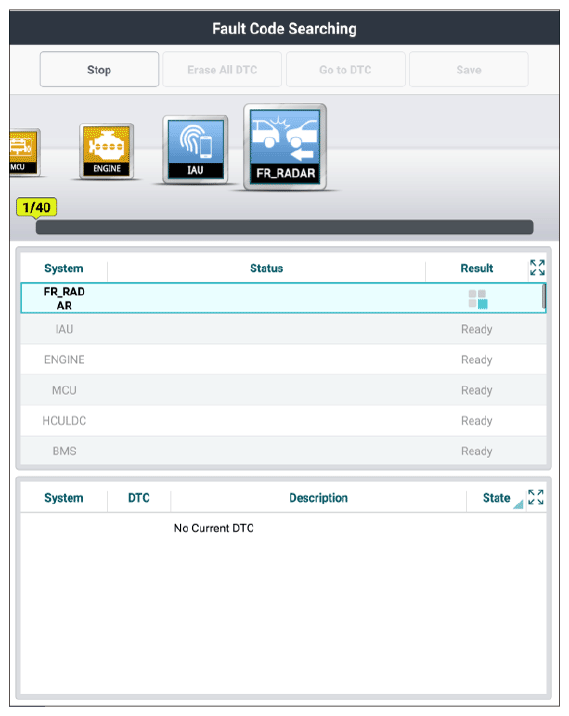

Courtesy of KIA MOTORS AMERICA, INC.

Good

Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary, Go to "VERIFICATION OF REPAIR " procedure.

No Good

Repair any CAN related DTCs first and then carefully re-do this troubleshooting guide steps.
If problem still occurs, Go to "Wiring Inspection " procedure.
