Front Axle Assembly
›
Components And Components Location
›
Components
Components And Components Location: Components

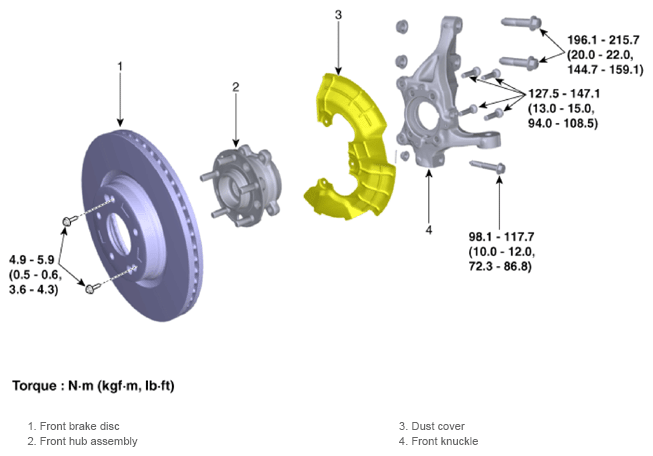

Fig 1: Front Hub And Front Axle Assembly Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
