Removal And Installation: Installation

Install in reverse order of removal.

NOTE:

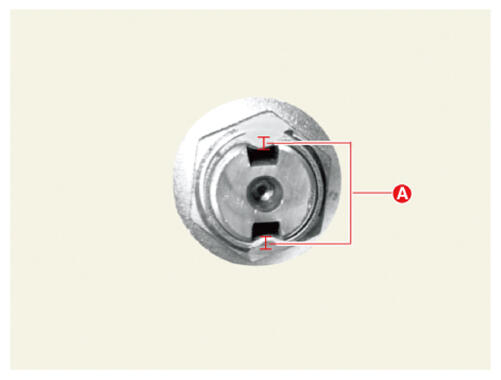

After tightening the driveshaft lock nut, caulk the lock nut to an appropriate depth (A) by using a chisel or suitable tool.

Caulking Depth (A):

1.5 mm (0.059 in.) or more

Courtesy of KIA MOTORS AMERICA, INC.

Press the brake pedal to prevent the driveshaft from rotating when tightening the driveshaft lock nut.
