Vehicle S/W Management

Inspection Condition Inspection Procedure Specification
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

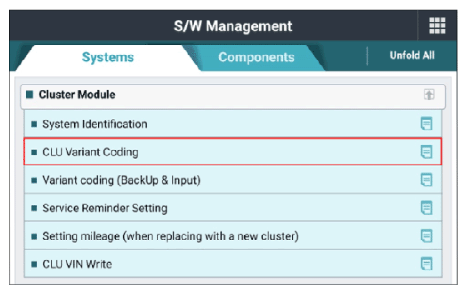

G15885010Courtesy of KIA MOTORS AMERICA, INC.

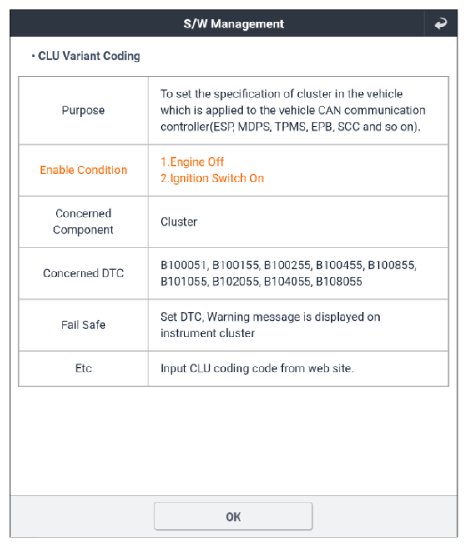

G15885011Courtesy of KIA MOTORS AMERICA, INC.

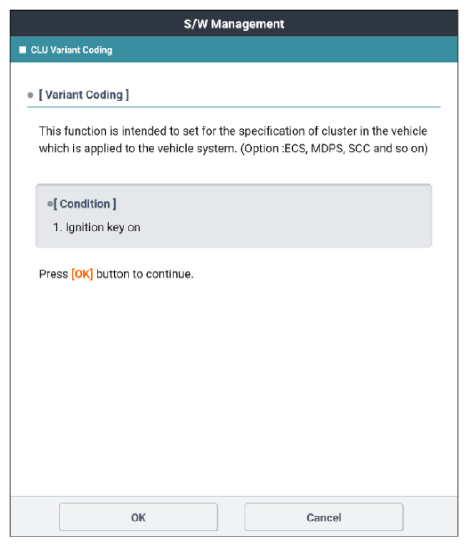

G15885012Courtesy of KIA MOTORS AMERICA, INC.

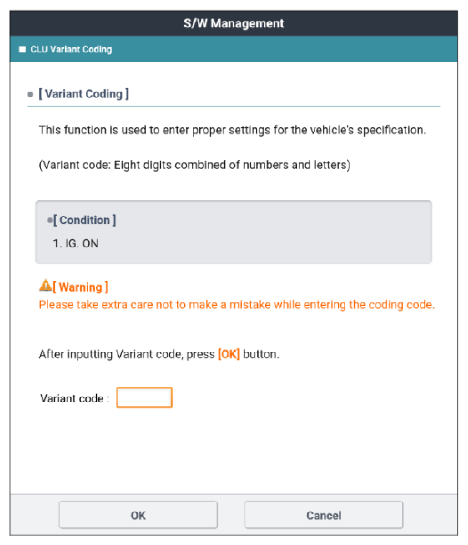

G15885013Courtesy of KIA MOTORS AMERICA, INC.

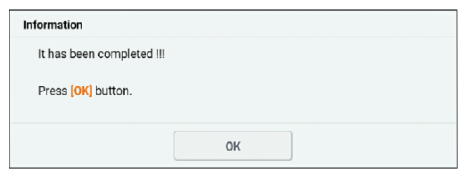

G15885014Courtesy of KIA MOTORS AMERICA, INC.
