Vehicle S/W Management

Inspection Condition Inspection Procedure Specification
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

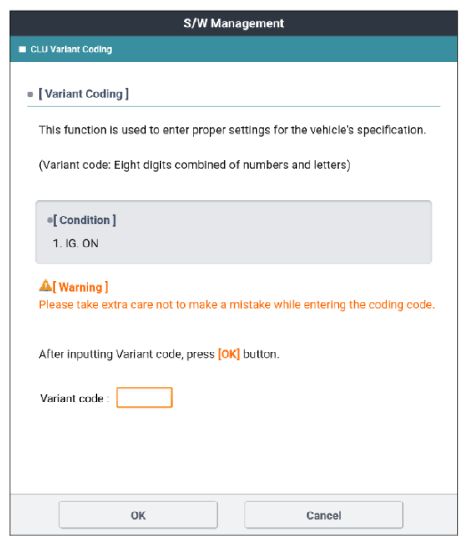

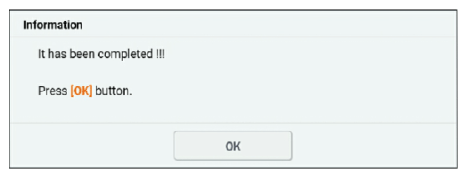

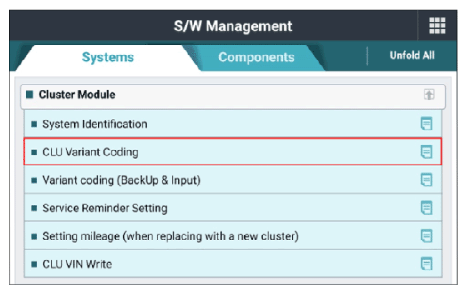

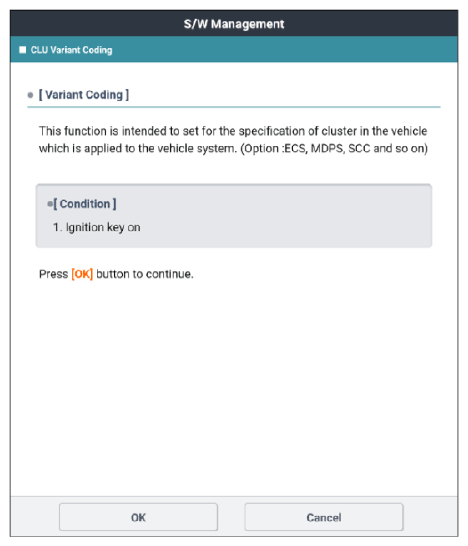

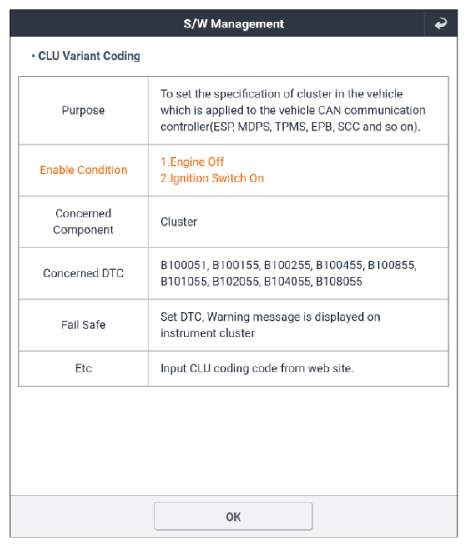

 Fig.1 to 5
G15885158Courtesy of KIA MOTORS AMERICA, INC.
G15885159Courtesy of KIA MOTORS AMERICA, INC.
G15885160Courtesy of KIA MOTORS AMERICA, INC.
G15885161Courtesy of KIA MOTORS AMERICA, INC.
G15885162Courtesy of KIA MOTORS AMERICA, INC.
