DTC B1008-55: MDPS Present Error - Coding Code Error
›
System Inspection
›
Vehicle S/W Management
Vehicle S/W Management
Inspection Condition
Inspection Procedure
Specification
Ignition "ON".
Connect KDS to "Data Link Connector (DLC)".

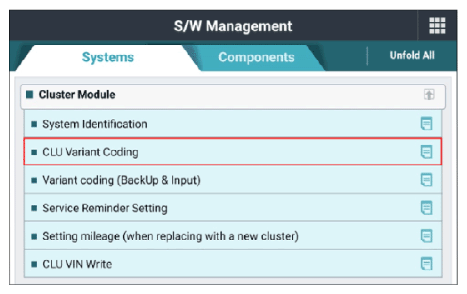

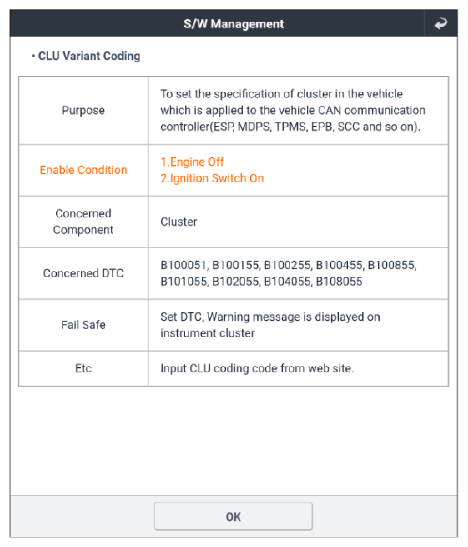

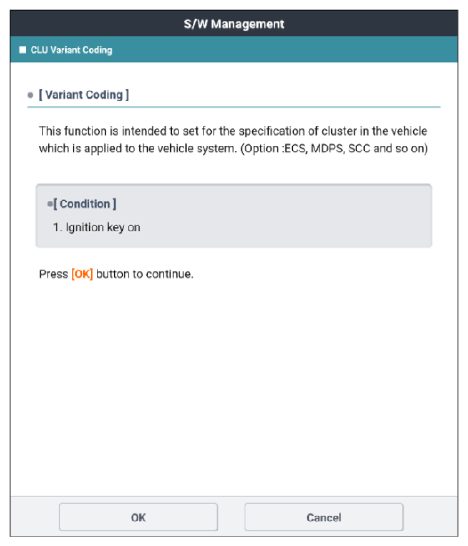

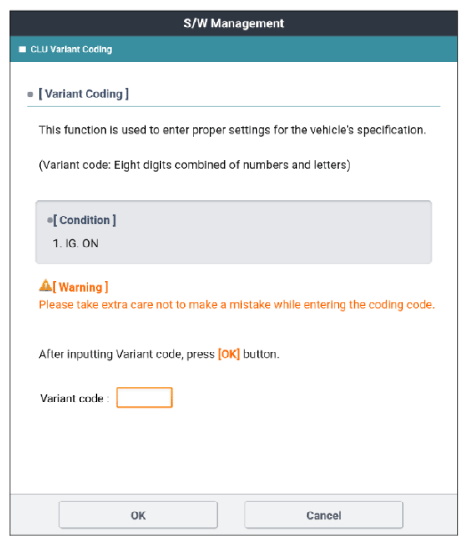

Perform "Vehicle S/W Management" of concerned component with KDS.
Fig.1 to 5
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
