DTC B1020-55: TPMS Present Error - Coding Code Error
›
System Inspection
›
Vehicle S/W Management
Vehicle S/W Management
Inspection Condition
Inspection Procedure
Specification
Ignition "ON".
Connect KDS to "Data Link Connector (DLC)".
Perform "Vehicle S/W Management" of concerned component with KDS.

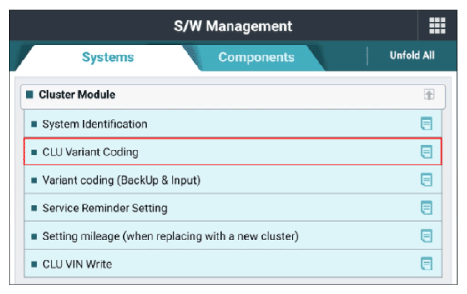

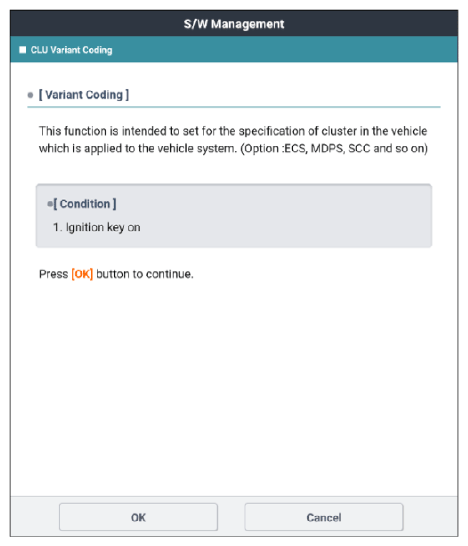

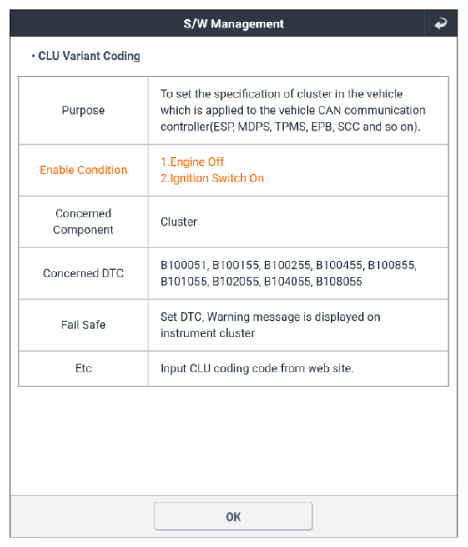

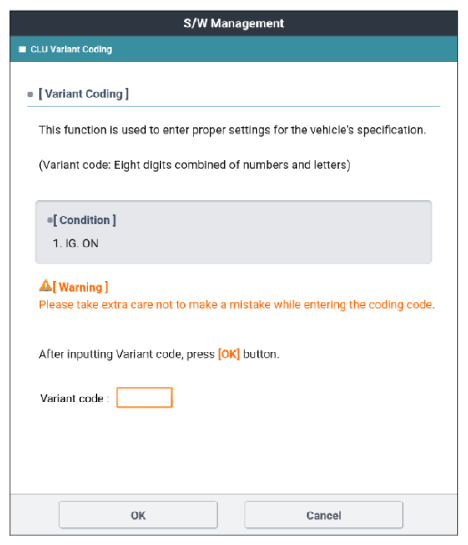

Fig.1 to 5
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
