Component
Components And Components Location: Component

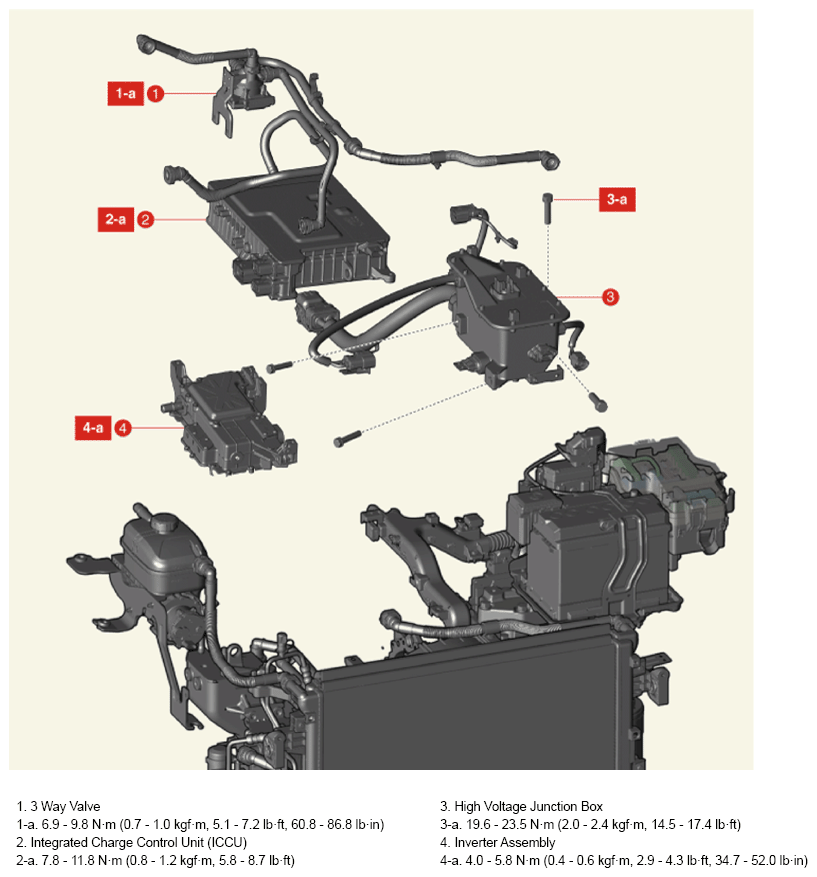

Fig 1: Inverter Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
