Vehicle S/W Management

Inspection Condition Inspection Procedure Specification
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

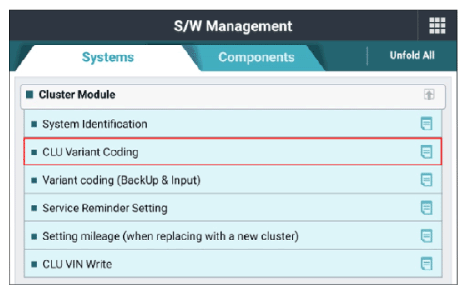

G15885040Courtesy of KIA MOTORS AMERICA, INC.

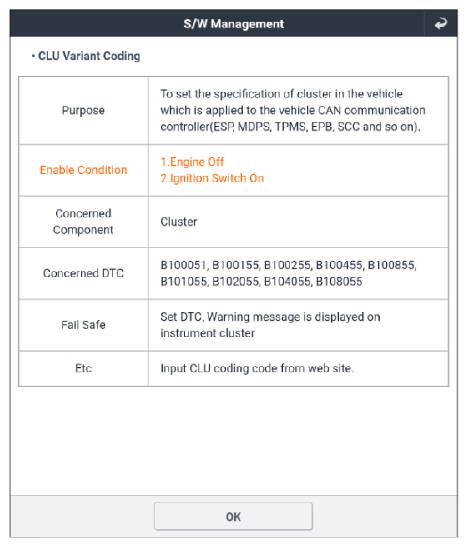

G15885041Courtesy of KIA MOTORS AMERICA, INC.

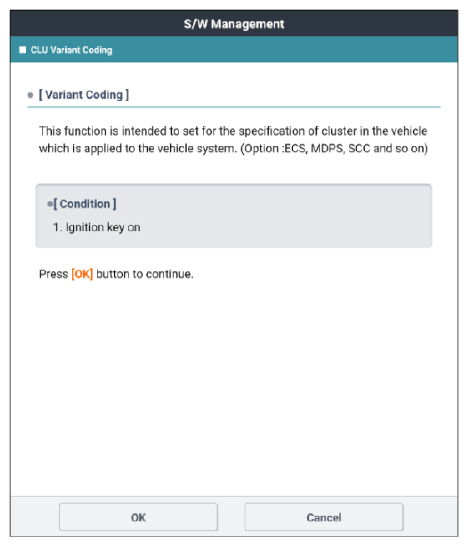

G15885042Courtesy of KIA MOTORS AMERICA, INC.

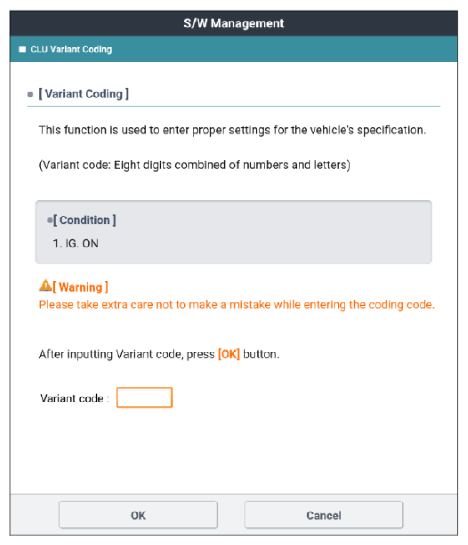

G15885043Courtesy of KIA MOTORS AMERICA, INC.
G15885044Courtesy of KIA MOTORS AMERICA, INC.
