Removal & Installation: Removal

WARNING: When working on high voltage system or related components, be sure to be familiar with and comply with the "HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION ." Failure to comply can lead serious accidents due to electric shock or short circuit.

Remove the fuel pump module.
Refer to Fuel Delivery System - "FUEL PUMP MODULE ")

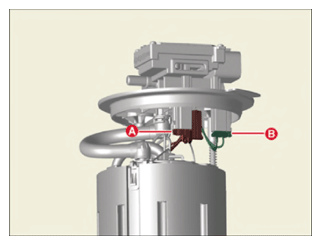

Disconnect the fuel pump connector (A) and fuel sender connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

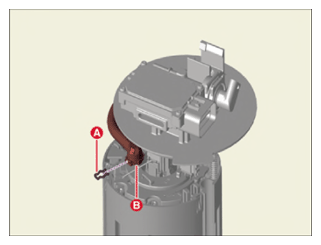

Separate the fuel feed hose connector (B) after removing the clip (A).

Courtesy of KIA MOTORS AMERICA, INC.

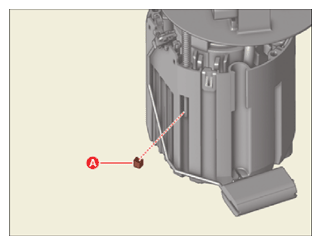

Remove the stopper (A) from the plate pipe.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the plate assembly (A) and O-ring (B).

Courtesy of KIA MOTORS AMERICA, INC.
