Fuel Pump Module: Inspection

Remove the rear seat assembly.
(Refer to Body - "REAR SEAT ASSEMBLY ")

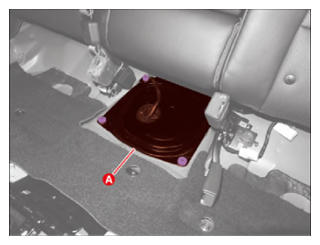

Remove the service cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

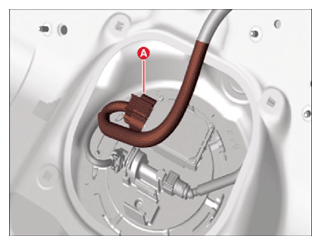

Disconnect the Fuel Pump Control Module (FPCM) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

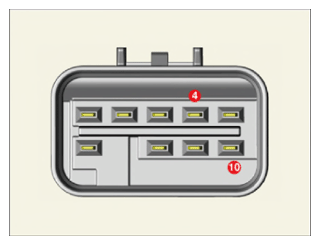

Check fuel pump operation by connecting power to terminal 10 (+) and ground to terminal 4 (-) of connector.

Courtesy of KIA MOTORS AMERICA, INC.

Terminal	Function
4	Ground
10	Battery power (B+)
