Components And Components Location: Components

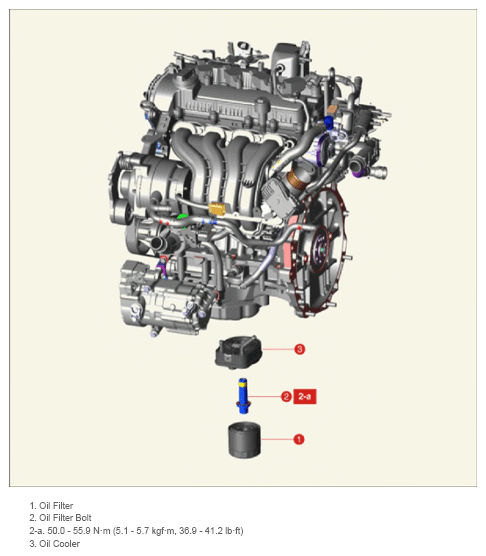

Fig 1: Oil Cooler Components Location With Torque Specification
G15787273Courtesy of KIA MOTORS AMERICA, INC.
