Repair and Diagnosis
›
Engine Mechanical
›
Lubrication System (PHEV)
›
Oil Level Gauge And Guide
›
Components And Components Location
›
Components
Components And Components Location: Components

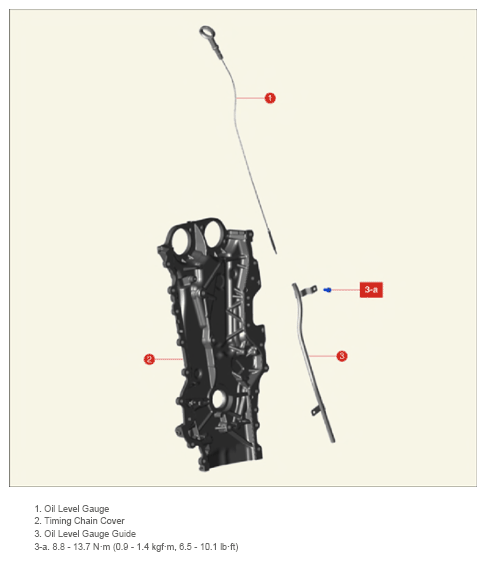

Fig 1: Oil Level Gauge And Guide Components Location With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
