Engine Coolant Temperature Sensor (ECTS)
›
Components And Components Location
›
Component Location
›
Integrated Thermal Management Module (ITM) side
Integrated Thermal Management Module (ITM) side

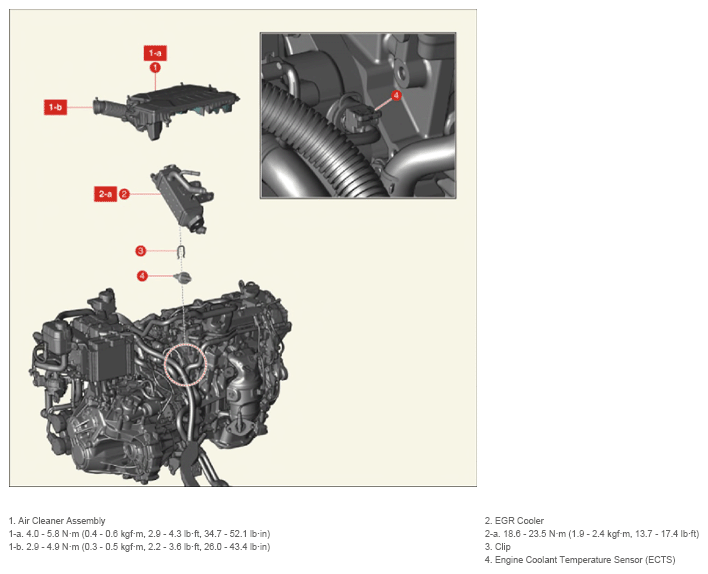

Fig 1: Engine Coolant Temperature Sensor Components Location With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
