Fuel Delivery System (PHEV)
›
Delivery Pipe
›
Components And Components Location
›
Component Location
Component Location

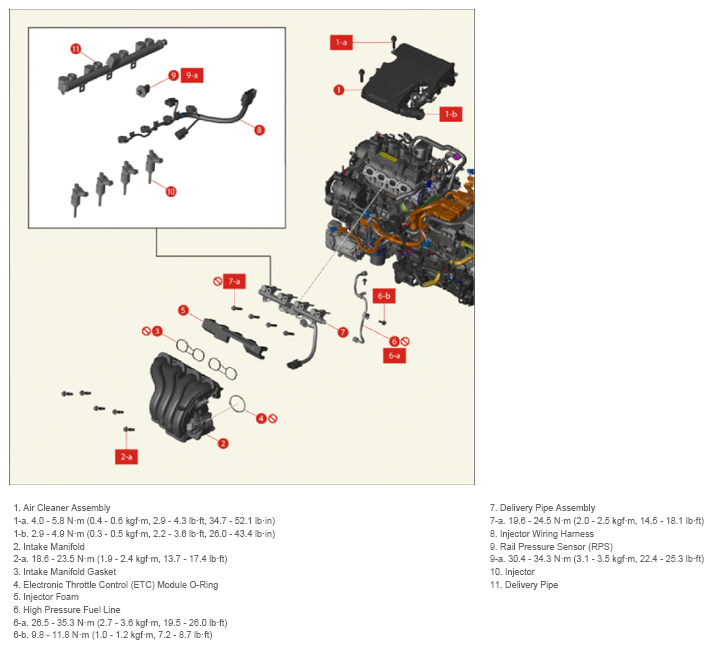

Fig 1: Delivery Pipe Components Location With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
