Inspection Procedure

Check related fuse(s) or relay(s).
Check 12V battery terminals and charge status.

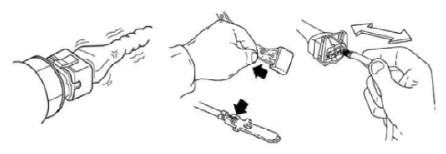

Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

Courtesy of KIA MOTORS AMERICA, INC.

Good
- Carefully re-do troubleshooting steps.
- If no problems were found with the circuits or connectors, replace the ECM and Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Repair as necessary and Go to "VERIFICATION OF REPAIR " procedure.
