Clutch Actuator Assembly
›
Components And Components Location
›
Component
Components And Components Location: Component

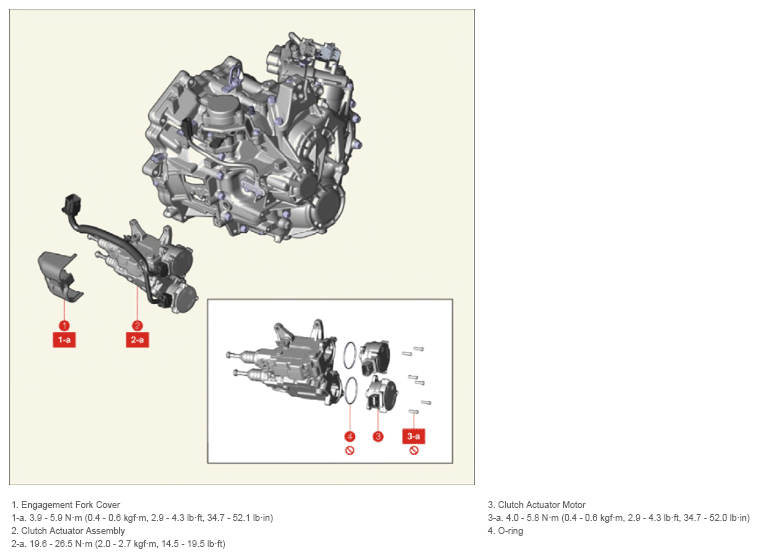

Fig 1: Clutch Actuator Assembly Components Location With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
