FixVault
Home
›
Kia
›
2023
›
Niro Plug-In Hybrid EX
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Dual Clutch Transmission Control System (PHEV)
›
Shift Lever
›
Components And Components Location
›
Component
Components And Components Location: Component

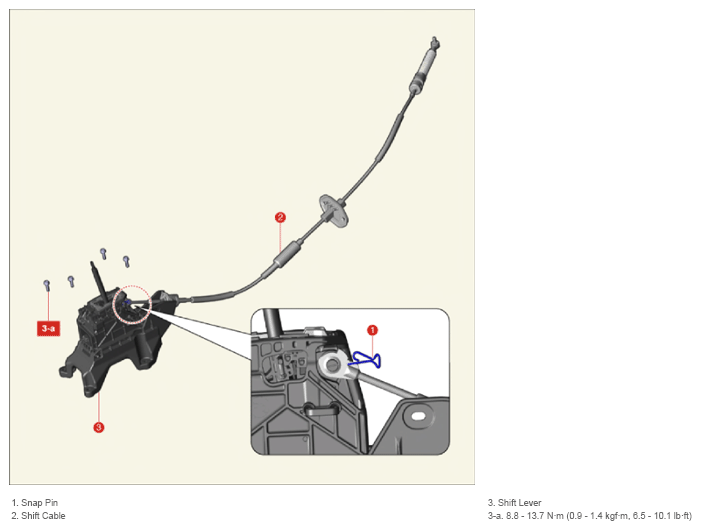

Fig 1: Shift Lever Components Location With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
